Part number ：LM2476TB LM2476 Monolithic Triple Channel 6.5 ns High Gain CRT Driver and Bias Clamp
Brand：NS
Packag：SIP-19
Remarks：Original have in stock
PDF datasheet：
The LM2476 is a monolithic triple channel CRT driver and triple bias clamp for low-cost color monitor applications. The highly integrated IC contains three wide-band amplifiers for driving the RGB cathodes of a CRT through external coupling capacitors and three low-band clamp amplifiers for DC restoration and cutoff adjustment of the video outputs. The CRT drivers have a high, fixed gain of -27 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The IC is packaged in a 19-lead TO-247 molded plastic package and must be operated with a properly chosen heat sink. See the Package Mounting and Thermal Considerations sections for more information.
Features
Well-matched to the LM123X/4X family of preamplifiers
Operates with VCC = 60V to 90V
Convenient TO-247 staggered lead package style
| Datasheets | LM2476 |
|---|---|
| Product Photos | TB19A |
| Standard Package | 24 |
| Category | Integrated Circuits (ICs) |
| Family | Linear - Amplifiers - Video Amps and Modules |
| Series | - |
| Packaging | Tube |
| Applications | Bias Clamp, CRT Driver |
| Output Type | - |
| Number of Circuits | 3 |
| -3db Bandwidth | - |
| Slew Rate | - |
| Current - Supply | 34mA |
| Current - Output / Channel | - |
| Voltage - Supply, Single/Dual (±) | 60 V ~ 85 V |
| Mounting Type | Surface Mount |
| Package / Case | TO-247-19 Formed Leads |
| Supplier Device Package | TO-247 |
| Other Names | LM2476TB LM2476TB-ND |

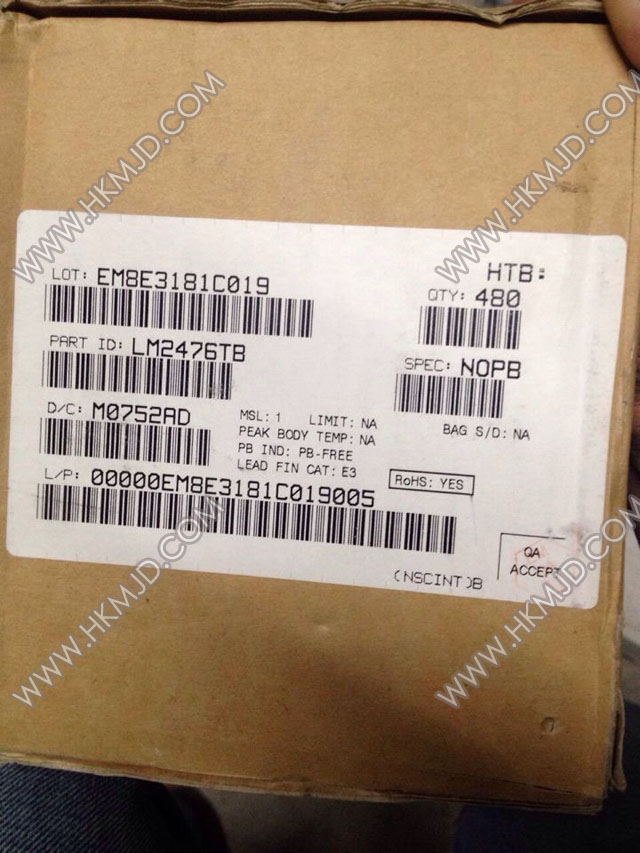

LM2476TB PICTURE:
