SONY CXM3582UR RF Switch SP10T 450MHz to 2.7GHz 15dB 26-Pin UQFN EP New and original have in stock

 SONY  CXM3582UR  RF Switch SP10T 450MHz to 2.7GHz 15dB 26-Pin UQFN EP  New and original have in stock

Description:

The CXM3582UR is a SP10T antenna switch module for GSM/UMTS/CDMA/LTE multi-mode handset.

The CXM3582UR has a built-in dual low pass filter and a +1.8 V CMOS compatible decoder.

The Sony GaAs junction gate pHEMT (JPHEMT) MMIC process is used for low insertion loss and high linearity.

The device has low BOM with no DC blocking capacitor.

Applications:

GSM/UMTS/CDMA/LTE multi-mode handsets

Features:

Low insertion loss: 0.45 dB (Typ.) TRx (Cellular band)

0.60 dB (Typ.) TRx (IMT Tx band)

High linearity: IIP3 = 68 dBm

Battery direct operation: V= 2.5 V to 5.0 VDD

No DC blocking capacitors except sourcing DC bias

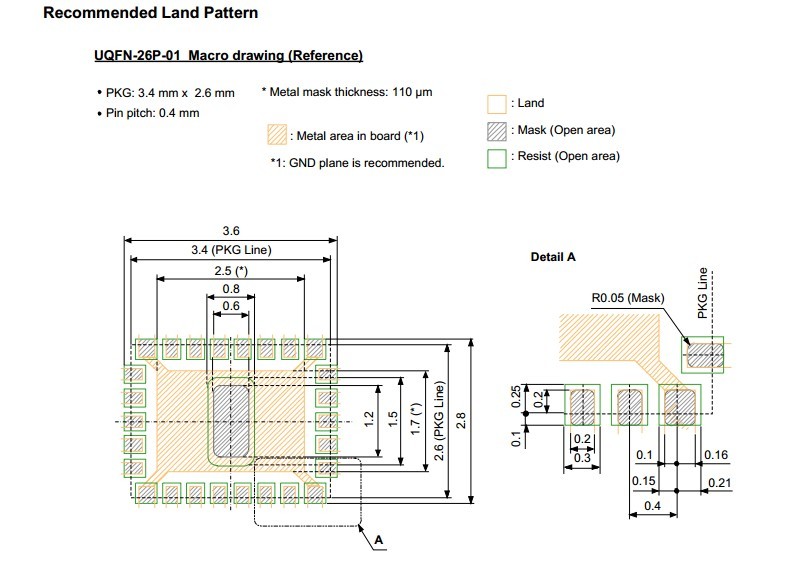

Small package size: 26-pin UQFN (2.6 mm x 3.4 mm x 0.6 mm Max.)

Lead-free and RoHS compliant

Structure:

GaAs junction gate pHEMT (JPHEMT) MMIC switch, CMOS decoder
