IR IRF1404ZPBF MOSFET N-CH 40V 75A TO-220AB
| Part number | Brand | Date | QTY | Package | Remarks |
| IRF1404ZPBF | IR | 14+ROHS | 7500 | TO-220 |
Original have in stock |
Features
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead-Free
| Datasheets | IRF1404ZPBF  |
|---|---|
| PCN Assembly/Origin | Backend Wafer Transfer 23/Oct/2013 |
| Standard Package | 50 |
| Category | Discrete Semiconductor Products |
| Family | FETs - Single |
| Series | HEXFET® |
| Packaging | Tube |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.7 mOhm @ 75A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) @ Vgs | 150nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 4340pF @ 25V |
| Power - Max | 200W |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |

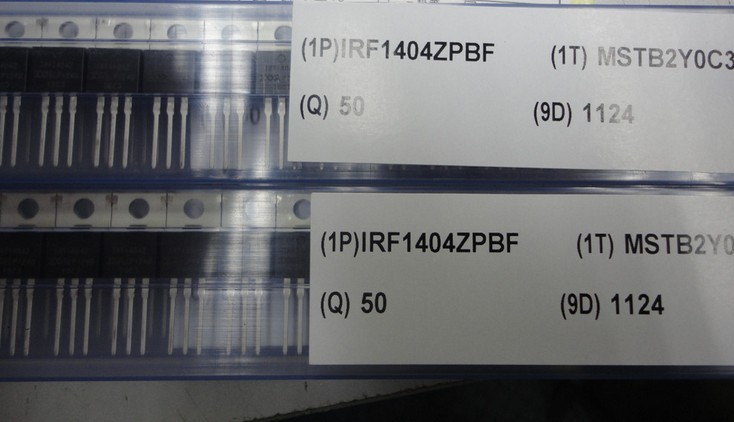

Picture:
From :www.hkmjd.com
