TI BQ24300DSGR BQ24300 IC LI+ CHARGER FRONT END 8-SON
| Part number | Brand | Date | QTY | Package | Remarks |
| BQ24300DSGR | TI | 14+ROHS | 7500 | QFN8 |
Original have in stock |
FEATURES
• Provides Protection for Three Variables:
– Input Overvoltage
– Input Overcurrent with Current Limiting
– Battery Overvoltage
• 30V Maximum Input Voltage
• Optional Input Reverse Polarity Protection
• High Immunity Against False Triggering Due to Voltage Spikes
• Robust Against False Triggering Due to Current Transients
• Thermal Shutdown
• Enable Function
• Small 2 mm × 2 mm 8-Pin SON Package
• LDO Mode Voltage Regulation Options:
– 5.5V on bq24300
– 4.5V on bq24304
APPLICATIONS
• Bluetooth Headsets
• Low-Power Handheld Devices
| Datasheets | BQ24300DSGR  |
|---|---|
| Packaging | Cut Tape (CT) |
| Function | Over/Under Voltage Protection |
| Battery Chemistry | Li-Ion |
| Voltage - Supply | 3.3 V ~ 26 V |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |

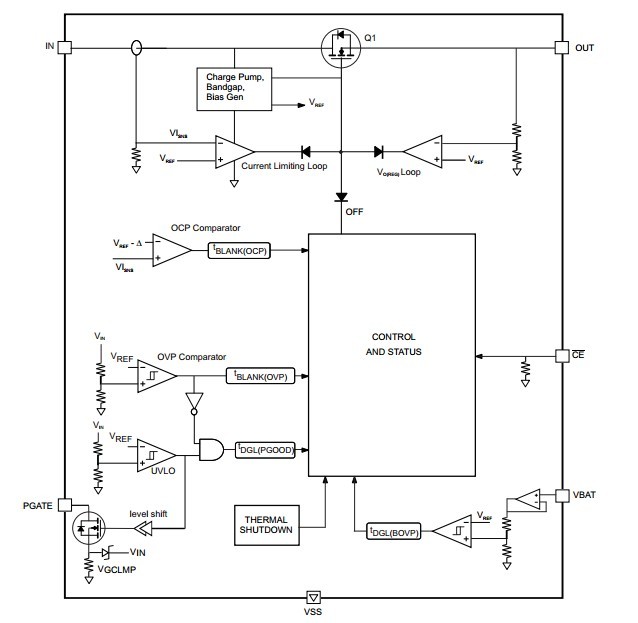

Simplified Block Diagram
