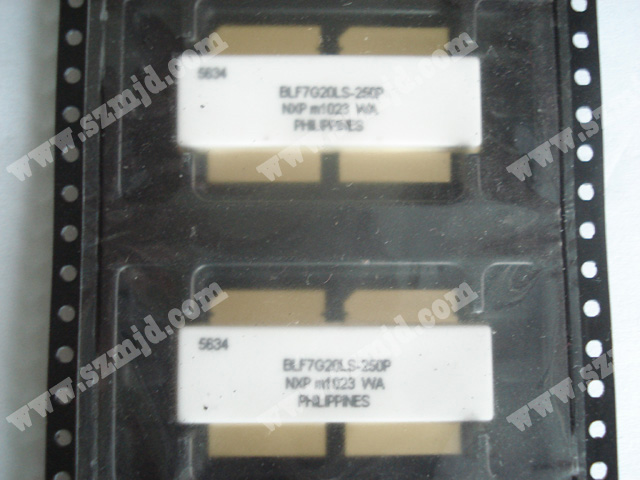

NXP BLF7G20LS-250P Power LDMOS transistor SOT539
| Part number | Brand | Date | QTY | Package | Remarks |
| BLF7G20LS-250P | NXP | 14+ROHS | 7500 | SOT539 |
Original have in stock |
Features and benefits
Excellent ruggedness
High efficiency
Low Rth providing excellent thermal stability
Designed for broadband operation (1805 MHz to 1880 MHz)
Lower output capacitance for improved performance in Doherty applications
Designed for low memory effects providing excellent pre-distortability
Internally matched for ease of use
Integrated ESD protection
Compliant to Restriction of Hazardous Substances (RoHS) Directive 2002/95/EC
Applications
RF power amplifiers for W-CDMA base stations
Multicarrier applications in the 1805 MHz to 1880 MHz frequency range
Specification
| Datasheet | BLF7G20LS-250P |
|---|---|
| Transistor Type | LDMOS |
| Frequency | 1.81GHz ~ 1.88GHz |
| Gain | 18dB |
| Voltage - Test | 28V |
| Current Rating | 37.54A |
| Noise Figure | - |
| Current - Test | 1.9A |
| Power - Output | 70W |
| Voltage - Rated | 65V |
| Package / Case | SOT539B |
