MAXIM MAX1823HEUB MAX1823 Dual USB Switch with Fault Blanking and Autoreset
| Part number | Brand | Date | QTY | Package | Remarks |
| MAX1823HEUB | MAXIM | 14+ROHS | 7500 | MSOP-10 |
Original have in stock |
Features
♦ Dual USB Switch in Tiny 10-Pin µMAX Package
♦ Autoreset Feature Saves Power
♦ Guaranteed 720mA Load per Channel
♦ Built-In 20ms Fault Blanking
♦ Compliant to USB Specification
♦ Blocks Reverse Current in Shutdown
(MAX1823A/MAX1823B)
♦ 4V to 5.5V Input Voltage Range
♦ Independent Shutdown Control
(MAX1823/MAX1823A—Active Low)
(MAX1823B/MAX1823H—Active High)
♦ Independent FAULT Indicator Outputs
♦ Thermal-Overload Protection
♦ 50µA Quiescent Current (Both Switches On)
♦ 3µA Standby Current
♦ UL Recognized
| Datasheets | MAX1823HEUB  |
|---|---|
| Packaging | Tape & Reel (TR) |
| Applications | USB, Peripherals |
| Current - Supply | 50µA |
| Voltage - Supply | 4 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |

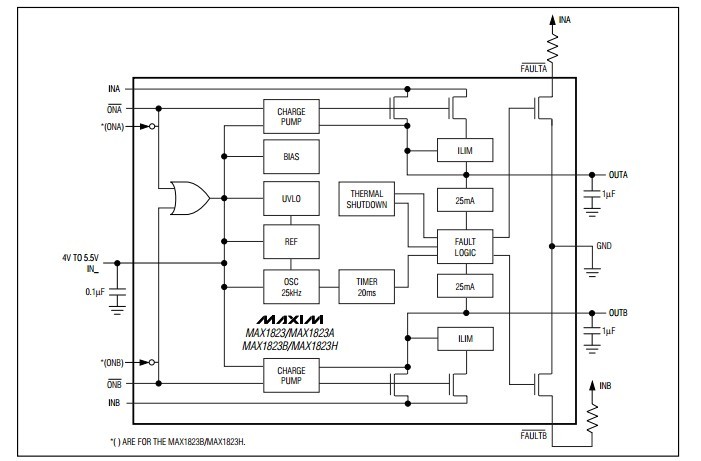

Functional Diagram
