Ramtron FM25V01 128Kb Serial 3V F-RAM Memory
| Part number | Brand | Date | QTY | Package | Remarks |
| FM25V01 | Ramtron | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Features
128K bit Ferroelectric Nonvolatile RAM
-Organized as 16,384 x 8 bits
-High Endurance 100 Trillion (1014) Read/Writes
-10 Year Data Retention
-NoDelay™ Writes
-Advanced High-Reliability Ferroelectric Process
Very Fast Serial Peripheral Interface - SPI
-Up to 40 MHz Frequency
-Direct Hardware Replacement for Serial Flash
-SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1)
Write Protection Scheme
-Hardware Protection
-Software Protection
Device ID
-Device ID reads out Manufacturer ID & Part ID
Low Voltage, Low Power
-Low Voltage Operation 2.0V – 3.6V
-Active Current 120 A (typ. @ 1MHz)
-Standby Current 90 A (typ.)
-Sleep Mode Current 5 A (typ.)
Industry Standard Configurations
-Industrial Temperature -40 C to +85 C
-8-pin “Green”/RoHS SOIC Package
Specification
| Datasheets | FM25V01 |
|---|---|
| Packaging | Tube |
| Format - Memory | RAM |
| Memory Type | FRAM (Ferroelectric RAM) |
| Memory Size | 128K (16K x 8) |
| Speed | 40MHz |
| Interface | SPI Serial |
| Voltage - Supply | 2 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |

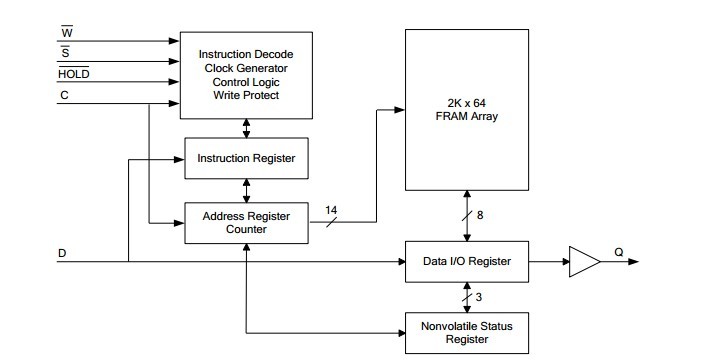

Block Diagram
