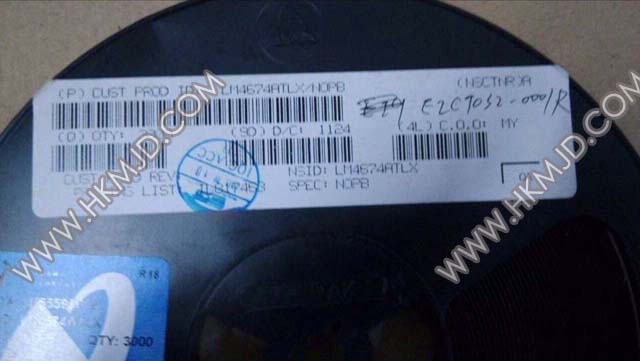

NS LM4674ATLX LM4674 Filterless 2.5W Stereo Class D Audio Power Amplifier
LM4674ATLX PDF：
Feature
Output Short Circuit Protection
Stereo Class D operation
No output filter required
Logic selectable gain
Independent shutdown control
Minimum external components
Click and Pop suppression
Micro-power shutdown
Available in space-saving 2mm x 2mm x 0.6mm micro
SMD package
Applications
Mobile phones
PDAs
Laptops
| Type | Class D |
|---|---|
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 2.5W x 2 @ 4 Ohm |
| Voltage - Supply | 2.4 V ~ 5.5 V |
| Features | Depop, Differential Inputs, PWM, Short-Circuit Protection, Shutdown |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-uSMD |
