ST VIPER22ADIP VIPER22 LOW POWER OFF LINE SMPS PRIMARY SWITCHER
VIPER22ADIP PDF:
DESCRIPTION

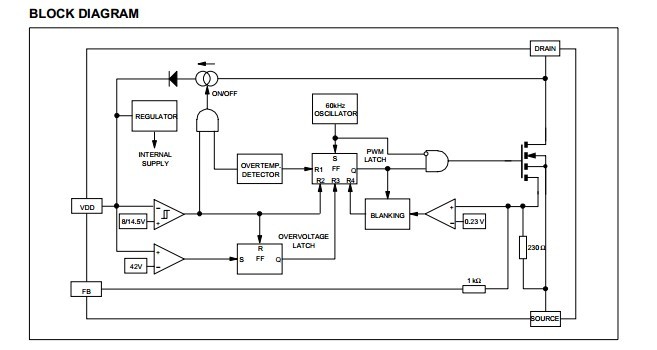

The VIPer22A combines a dedicated current modePWM controller with a high voltage PowerMOSFET on the same silicon chip. Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc. The internal control circuit offers the following benefits:
– Large input voltage range on the VDD pin accommodates changes in auxiliary supply voltage. This feature is well adapted to battery charger adapter configurations.
– Automatic burst mode in low load condition.
– Overvoltage protection in hiccup mode.
Features
FIXED 60 KHZ SWITCHING FREQUENCY
9V TO 38V WIDE RANGE VDD VOLTAGE
CURRENT MODE CONTROL
AUXILIARY UNDERVOLTAGE LOCKOUT WITH HYSTERESIS
HIGH VOLTAGE START UP CURRENT SOURCE
OVERTEMPERATURE, OVERCURRENT AND
OVERVOLTAGE PROTECTION WITH AUTORESTART
| Output Isolation | Isolated |
|---|---|
| Frequency Range | 54kHz ~ 66kHz |
| Voltage - Input | 8 V ~ 50 V |
| Voltage - Breakdown | 730V |
| Voltage - Output | - |
| Power (Watts) | 12W |
| Operating Temperature | 25°C ~ 125°C |
| Package / Case | 8-DIP (0.300", 7.62mm) |
