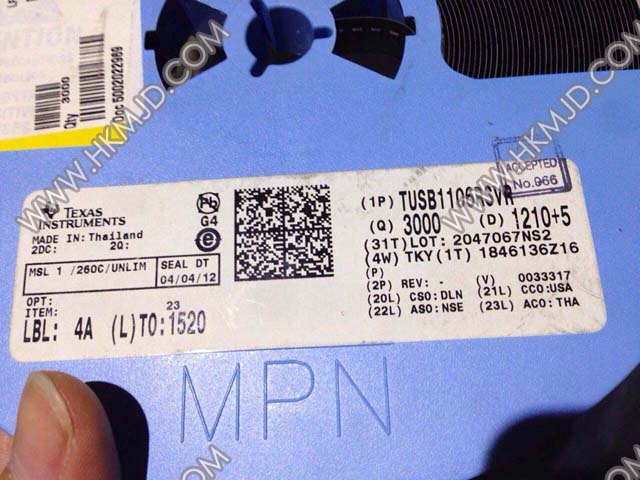

TI TUSB1106 TUSB1106RSVR ADVANCED UNIVERSAL SERIAL BUS TRANSCEIVERS
| Part number | Brand | Date | QTY | Package | Remarks |
| TUSB1106 | TI | 14+ROHS | 7500 | UQFN-16 |
Original have in stock |
Features
Compatible With Universal Serial Bus Specification Rev. 2.0
Transmit and Receive Serial Data at Both Full-Speed (12-Mbit/s)
and Low-Speed (1.5-Mbit/s) Data Rates
Integrated Bypassable 5-V to 3.3-V Voltage Regulator for Powering
Via USB VBUS
VBUS Disconnection Indication Through VP and VM
Used as USB Device Transceiver or USB Host Transceiver
Stable RCV Output During SE0 Condition
Two Single-Ended Receivers With Hysteresis
Low-Power Operation, Ideal for Portable Equipment
Support I/O Voltage Range From 1.65 V to 3.6 V
IEC-61000-4-2 ESD Compliant
±9-kV Contact-Discharge Model
(D+, D–, VCC(5.0))
±15-kV Human-Body Model
(D+, D–, VCC(5.0))
TUSB1105 Available in Quad Flat No-Lead (QFN) Package; TUSB1106
Available in QFN and Thin Shrink Small-Outline Package (TSSOP)
APPLICATIONS
Mobile Phones
Personal Digital Assistants (PDAs)
Information Appliances (IAs)
Digital Still Cameras (DSCs)
| Datasheets | TUSB1106 |
|---|---|
| Type | Transceiver |
| Protocol | USB 2.0 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 450mV |
| Data Rate | 1.5Mbps |
| Voltage - Supply | 1.65 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN |
