LT LTC6081CMS8 LTC6081 IC OPAMP GP 3.5MHZ RRO 8MSOP
| Part number | Brand | Date | QTY | Package | Remarks |
| LTC6081CMS8 | LT | 14+ROHS | 7500 | MSOP-8 |
Original have in stock |
FEATURES
■ Maximum Offset Voltage: 70μV (25°C)
■ Maximum Offset Drift: 0.8μV/°C
■ Maximum Input Bias: 1pA (25°C) 40pA (TA ≤ 85°C)
■ Open Loop Voltage Gain: 120dB Typ
■ Gain Bandwidth Product: 3.6MHz
■ CMRR: 100dB Min
■ PSRR: 98dB Min
■ 0.1Hz to 10Hz Noise: 1.3μVP-P
■ Supply Current: 330μA
■ Rail-to-Rail Inputs and Outputs
■ Unity Gain Stable
■ 2.7V to 5.5V Operation Voltage
■ Dual LTC6081 in 8-Lead MSOP and 10-Lead DFN10
Packages; Quad LTC6082 in 16-Lead SSOP and DFN Packages
Specification
| Datasheets | LTC6081CMS8 |
|---|---|
| Packaging | Tube |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1 V/µs |
| Gain Bandwidth Product | 3.5MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 0.2pA |
| Voltage - Input Offset | 70µV |
| Current - Supply | 340µA |
| Current - Output / Channel | 24mA |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 5.5 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |

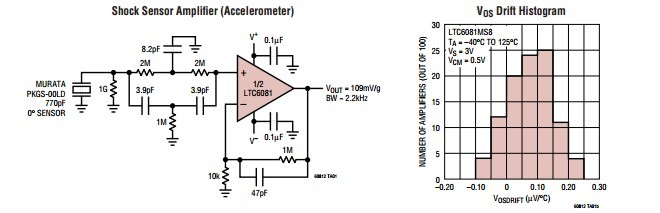

TYPICAL APPLICATION
