LT LT3825EFE LT3825 IC REG CTRLR FLYBK ISO 16-TSSOP
| Part number | Brand | Date | QTY | Package | Remarks |
| LT3825EFE | LT | 14+ROHS | 7500 | TSSOP-16 |
Original have in stock |
Feature
Senses Output Voltage Directly from Primary Side Winding—No Optoisolator Required
Synchronous Driver for High Effi ciency
Input Voltage Limited Only by External Power Components
Accurate Output Regulation Without User Trims
Switching Frequency from 50kHz to 250kHz
Synchronizable
Load Compensation
Programmable Undervoltage Lockout
Available in a Thermally Enhanced 16-Lead TSSOP Package
| Datasheets | LT3825EFE |
|---|---|
| PWM Type | Current Mode |
| Number of Outputs | 1 |
| Frequency - Max | 250kHz |
| Duty Cycle | 88% |
| Voltage - Supply | 11 V ~ 18 V |
| Buck | No |
| Boost | No |
| Flyback | Yes |
| Inverting | No |
| Doubler | No |
| Divider | No |
| Cuk | No |
| Isolated | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |

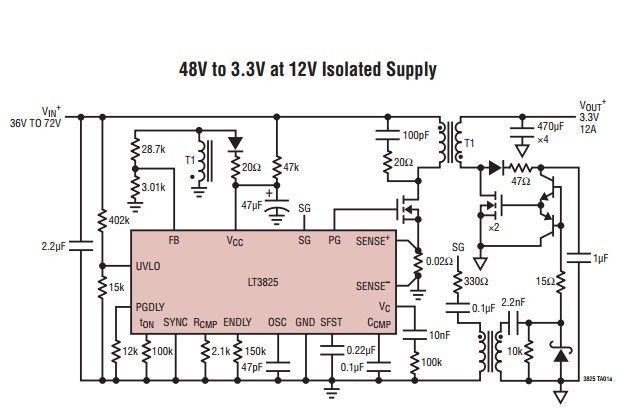

TYPICAL APPLICATION
