MSP430F5528IZQER MSP430F5528 MIXED SIGNAL MICROCONTROLLER
| Part number | Brand | Date | QTY | Package | Remarks |
| MSP430F5528IZQER | TI | 14+ROHS | 7500 | BGA |
Original have in stock |
PDF Datasheet：
| EU RoHS | Compliant |
| Data Bus Width (bit) | 16 |
| CECC Qualified | No |
| Core Architecture | MSP430 |
| Instruction Set Architecture | RISC |
| Device Core | MSP430 |
| Maximum Clock Rate (MHz) | 25 |
| Number of ADCs | Single |
| Program Memory Type | Flash |
| Program Memory Size | 128KB |
| RAM Size | 10KB |
| Family Name | MSP430 |
| Number of I/Os | 47 |
| No. of Timers | 4 |
| ADC Channels | 12 |
| ADC Resolution | 12 |
| Pin Count | 80 |
| Supplier Package | BGA MICROSTAR JUNIOR |
| Programmability | Yes |
| SPI | 2 |
| I2C | 2 |
| UART | 2 |
| Max. Speed (MHz) | 25 |
| Minimum Operating Supply Voltage (V) | 1.8 |
| Typical Operating Supply Voltage (V) | 2.5|3.3 |
| Packaging | Tape and Reel |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Standard Package Name | BGA |
| Military Qualified | No |
| Lead Shape | Ball |
| Mounting | Surface Mount |
| Package Height (mm) | 0.77(Max) |
| Package Length (mm) | 5.1(Max) |
| Package Width (mm) | 5.1(Max) |
| PCB | 80 |
| Standard Package Name | BGA |
| Supplier Package | BGA MICROSTAR JUNIOR |
| Pin Count | 80 |
| Lead Shape | Ball |
| Taxonomy |
Microcontroller and Processor |

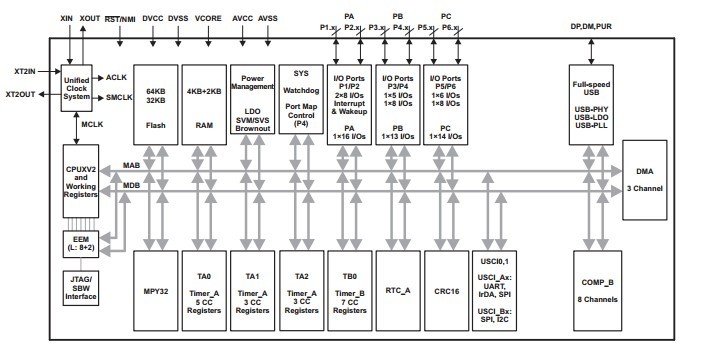

Block Diagram
