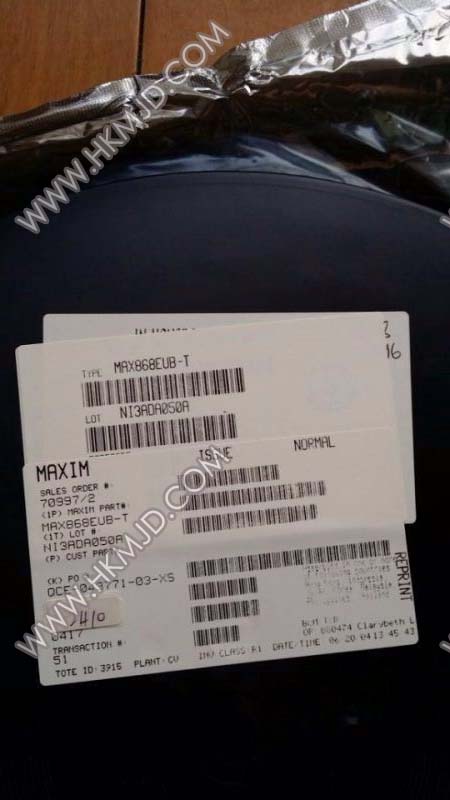

MAXIM MAX868EUB MAX868 IC REG MULTI CONFIG ADJ 10UMAX
| Part number | Brand | Date | QTY | Package | Remarks |
| MAX868EUB | MAXIM | 14+ROHS | 7500 | MSOP-10 |
Original have in stock |
Features
♦ Regulated Negative Output Voltage (up to -2 x VIN)
♦ Ultra-Small, 10-Pin µMAX Package
♦ On-Demand Switching at up to 450kHz
♦ 30µA Quiescent Supply Current
♦ Requires Only Four Small External Capacitors
♦ 1.8V to 5.5V Input Voltage Range
♦ 0.1µA Logic-Controlled Shutdown
♦ Up to 30mA Output Current
| Datasheet | MAX868EUB |
|---|---|
| Type | Switched Capacitor (Charge Pump), Doubler, Inverting |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Output | -3.6 V ~ -11 V |
| Voltage - Input | 1.8 V ~ 5.5 V |
| PWM Type | - |
| Frequency - Switching | 270kHz ~ 630kHz |
| Current - Output | 30mA |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
