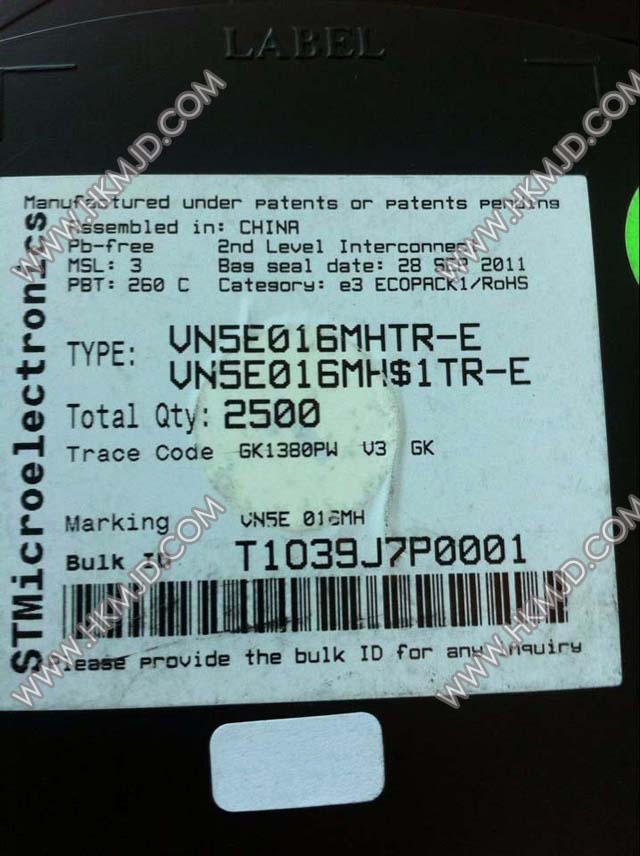

ST VN5E016MHTR VN5E016 IC DVR SWITCH HI SIDE SGL HPAK-6
| Part number | Brand | Date | QTY | Package | Remarks |
| VN5E016MHTR | ST | 14+ROHS | 7500 | TO252-7 |
Original have in stock |
Features
General
Inrush current active management by power limitation
Very low standby current
3.0 V CMOS compatible inputs
Optimized electromagnetic emissions
Very low electromagnetic susceptibility
In compliance with the 2002/95/EC European directive
Diagnostic functions
Proportional load current sense
High current sense precision for wide current range
Current sense disable
Overload and short to ground (power limitation) indication
Thermal shutdown indication
Protections
Undervoltage shutdown
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Protection against loss of ground and loss of VCC
Overtemperature shutdown with auto restart (thermal shutdown)
Reverse battery protected
Electrostatic discharge protection
| Part number | VN5E016MHTR |
|---|---|
| Type | High Side |
| Input Type | Non-Inverting |
| Number of Outputs | 1 |
| On-State Resistance | 16 mOhm |
| Current - Output / Channel | 54A |
| Current - Peak Output | 73A |
| Voltage - Supply | 4.5 V ~ 28 V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-7, DPak (6 Leads + Tab) |
