Freescale MMA8453QR1 MMA8453Q MMA8453 10-bit/8-bit Digital Accelerometer
| Part number | Brand | Date | QTY | Package | Remarks |
| MMA8453QR1 | Freescale | 14+ROHS | 7500 | QFN16 |
Original have in stock |
Features
• 1.95V to 3.6V supply voltage
• 1.6V to 3.6V interface voltage
• ±2g/±4g/±8g dynamically selectable full-scale
• Output Data Rates (ODR) from 1.56 Hz to 800 Hz
• 99 μg/√Hz noise
• 10-bit and 8-bit digital output
•I2
Cdigital output interface (operates to 2.25 MHz with 4.7 kΩpullup)
• Two programmable interrupt pins for six interrupt sources
• Three embedded channels of motion detection
– Freefall or Motion Detection: 1 channel
– Pulse Detection: 1 channel
– Jolt Detection: 1 channel
• Orientation (Portrait/Landscape)detection with set hysteresis
• Automatic ODR change for Auto-WAKE and return to SLEEP
•Self-Test
• RoHS compliant
• Current Consumption: 6 μA to 165 μA
| Datasheet | MMA8453QR1 |
|---|---|
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Sensitivity | 256LSB/g, 128LSB/g, 64LSB/g |
| Voltage - Supply | 1.95 V ~ 3.6 V |
| Output Type | I²C |
| Bandwidth | 800Hz |
| Interface | Serial |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN |

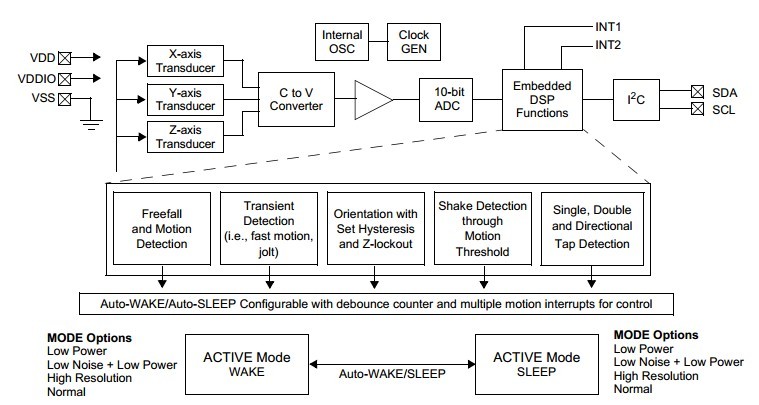

Block Diagram and Pin Description
