ADP2441ACPZ ADP2441 Step-Down DC-to-DC Regulator
| Part number | Brand | Date | QTY | Package | Remarks |
| ADP2441ACPZ | AD | 14+ROHS | 7500 | QFN-12 |
Original have in stock |
FEATURES
Wide input voltage range of 4.5 V to 36 V
Low minimum on time of 50 ns
Maximum load current of 1 A
High efficiency of up to 94%
Adjustable output down to 0.6 V
±1% output voltage accuracy
Adjustable switching frequency of 300 kHz to 1 MHz
Pulse skip mode at light load for power saving
Precision enable input pin
Open-drain power good
External soft start with tracking
Overcurrent-limit protection
Shutdown current of less than 15 μA
UVLO and thermal shutdown
12-lead, 3 mm × 3 mm LFCSP package
APPLICATIONS
Point of load applications
Distributed power systems
Industrial control supplies
Standard rail conversion to 24 V/12 V/5 V/3.3 V
| Datasheet | ADP2441ACPZ |
|---|---|
| Type | Step-Down (Buck) |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Output | 0.6 V ~ 32.4 V |
| Voltage - Input | 4.5 V ~ 36 V |
| PWM Type | Current Mode |
| Frequency - Switching | 300kHz ~ 1MHz |
| Current - Output | 1A |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFQFN Exposed Pad, CSP |

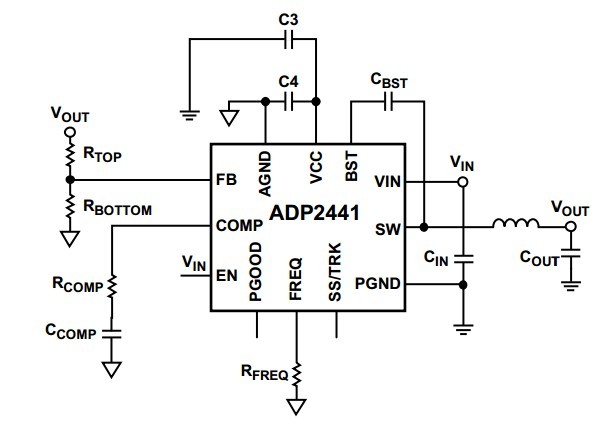

TYPICAL CIRCUIT CONFIGURATION
