BROADCOM BCM3348KPB BCM3348 HIGH-PERFORMANCE, SINGLE-CHIP

BROADCOM BCM3348KPB BCM3348 HIGH-PERFORMANCE, SINGLE-CHIP

PDF Datasheet：

FEATURE

State of the art, single chip DOCSIS/EuroDOCSIS 2.0

cable modem providing unprecedented levels of

integration and performance

• The BCM3348 integrates:

• Advanced QAMLink® transceiver supporting Annex A/B/C

operation

• DOCSIS/EuroDOCSIS 2.0 MAC

• High performance 200-MHz MIPS32™ CPU

• Advanced QAMLink™‚ downstream demodulator, supporting

4/16/32/64/128/256/512/1024-QAM

• Advanced QAMLink‚ upstream modulator, supporting

2/4/8/16/64/128/256-QAM wth S-CDMA

• Upstream power amplifier

• 10/100 Ethernet MAC/PHY with MII interface

• Single 28-MHz reference crystal

• USB 1.1 slave port with integrated transceiver

• 100-MHz SDRAM interface

• Advanced RF and control interface to silicon tuner for

DOCSIS/EuroDOCSIS solutions

• EJTAG embedded ICE support

• On-chip support for PROPANETM packet acceleration

• Sixth-generation technology

• On-chip regulation support single voltage operation

• 352-pin PBGA package

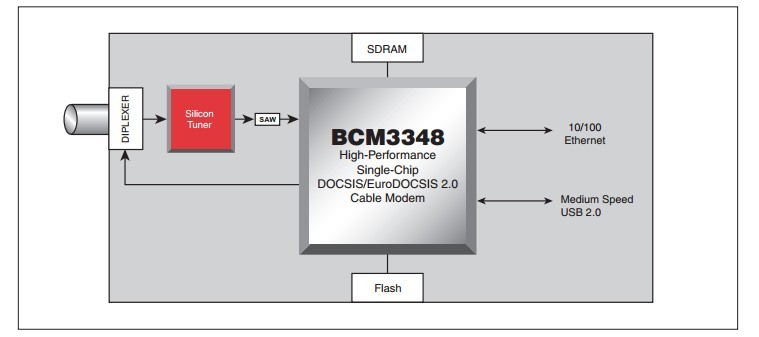

High-Performance, Single-Chip DOCSIS/EuroDOCSIS 2.0 Cable Modem
