MAXIM MAX98502EWE MAX98502 AUDIO AMPLIFIER New in Stock
| Part number | Brand | Date | QTY | Package | Remarks |
| MAX98502EWE | MAXIM | 14+ROHS | 7500 | BGA |
Original have in stock |
Features
Boosted Class D Output
Integrated Automatic Level Control
Output Power
-2.2W into 8I, 10% THD+N
-1.7W into 8I, 1% THD+N
-4.1W into 4I, 10% THD+N
-3.4W into 4I, 1% THD+N
Wide 2.5V to 5.5V Supply Voltage Range
Undervoltage Lockout Protection
High Total Efficiency of 87%
High Step-Up Switching Frequency (2MHz)
Active Emission Limiting for Low EMI
| Datasheet | MAX98502EWE |
|---|---|
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 4.1W x 1 @ 4 Ohm |
| Voltage - Supply | 2.5 V ~ 5.5 V |
| Features | Depop, Differential Inputs, Shutdown |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-WLP (2x2) |
| Package / Case | 16-WFBGA, WLBGA |

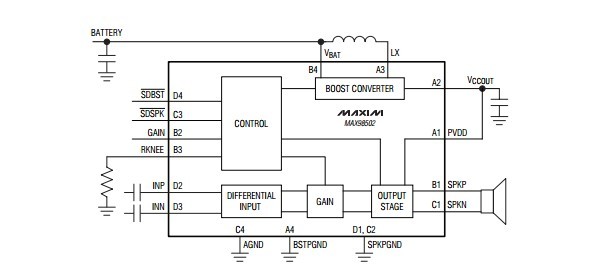

Simplified Block Diagram
