LT LT3466EDD LT3466 Built-In Schottky Diodes New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| LT3466EDD | LT | 14+ROHS | 7500 | DFN-10 |
Original have in stock |
FEATURES
■ Drives Up to 20 White LEDs (10 in Series
per Converter) from a 3.6V Supply
■ Two Independent Step-Up Converters Capable of
Driving Asymmetric LED Strings
■ Independent Dimming and Shutdown Control
of the Two LED Strings
■ Internal Schottky Diodes
■ Internal Soft-Start Eliminates Inrush Current
■ Open LED Protection (42V Max VOUT)
■ Fixed Frequency Operation Up to 2MHz
■ 81% Efficiency Driving 16 White LEDs at 15mA
(Eight per Driver) from a 3.6V Supply
■ Wide Input Voltage Range: 2.7V to 24V
■ Tiny (3mm × 3mm) 10-Lead DFN Package
APPLICATIONS
■ Main/Sub Displays
■ Digital Cameras, Sub-Notebook PCs
■ PDAs, Handheld Computers
■ Automotive
| Datasheet | LT3466EDD |
|---|---|
| Constant Current | Yes |
| Constant Voltage | - |
| Topology | PWM, Step-Up (Boost) |
| Number of Outputs | 2 |
| Internal Driver | Yes |
| Type - Primary | Automotive, Backlight |
| Type - Secondary | White LED |
| Frequency | 200kHz ~ 2MHz |
| Voltage - Supply | 2.7 V ~ 24 V |
| Voltage - Output | 39.5V |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Operating Temperature | -40°C ~ 85°C |

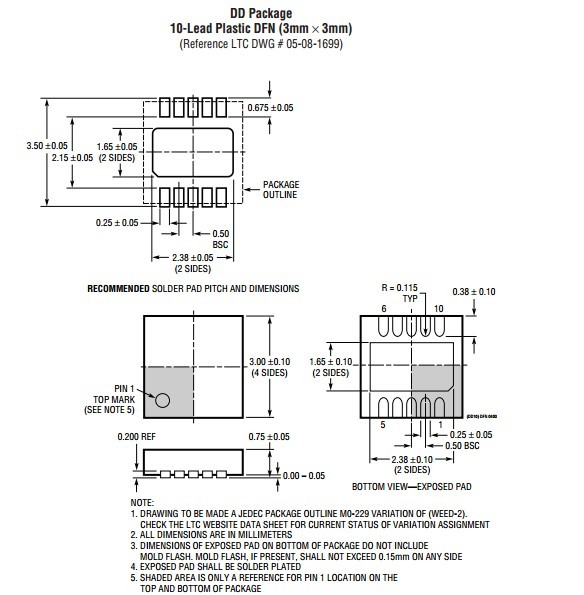

PACKAGE DESCRIPTION
