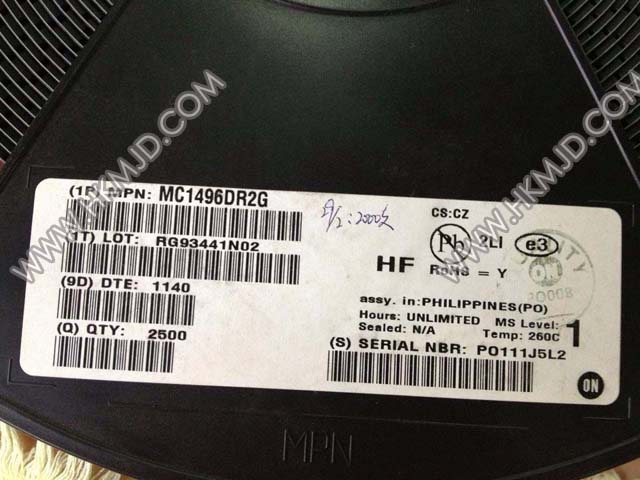

ON MC1496DR2G MC1496 BALANCED MODULATORS MJD New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| MC1496DR2G | ON | 14+ROHS | 7500 | SOP-14 |
Original have in stock |
Features
• Excellent Carrier Suppression
−65 dB typ @ 0.5 MHz
−50 dB typ @ 10 MHz
• Adjustable Gain and Signal Handling
• Balanced Inputs and Outputs
• High Common Mode Rejection −85 dB Typical
• This Device Contains 8 Active Transistors
• Pb−Free Package is Available*
SPECIFICATIONS：
|
Mfr Package Description |
LEAD-FREE, SOIC-14 |
|
Lead Free |
Yes |
|
EU RoHS Compliant |
Yes |
|
China RoHS Compliant |
Yes |
|
Status |
ACTIVE |
|
Package Shape |
RECTANGULAR |
|
Package Style |
SMALL OUTLINE |
|
Surface Mount |
Yes |
|
Terminal Form |
GULL WING |
|
Terminal Pitch |
1.27 mm |
|
Terminal Finish |
MATTE TIN |
|
Terminal Position |
DUAL |
|
Number of Functions |
1 |
|
Number of Terminals |
14 |
|
Package Body Material |
PLASTIC/EPOXY |
|
Temperature Grade |
COMMERCIAL |
|
Operating Temperature-Max |
70 Cel |
|
Operating Temperature-Min |
0.0 Cel |
|
Supply Voltage-Max (Vsup) |
12 V |
|
Supply Voltage-Min (Vsup) |
12 V |
|
Consumer IC Type |
CONSUMER CIRCUIT |
