DAC8871SBPWR DAC8871 16-Bit, Single-Channel, ±18V Output New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| DAC8871SBPWR | TI | 14+ROHS | 7500 | TSSOP-16 |
Original have in stock |
FEATURES
• 16-Bit Resolution
• Output: ±18V for ±18V Reference Input
• ±18V Supply Operation
• Very Low Power
• High Accuracy INL: 1LSB
• Low Noise: 10nV/√Hz
• Fast Settling: 1µs to 1LSB
• Fast SPI™ Interface: Up To 50MHz
• 16-Pin TSSOP Package
• Selectable Reset to Zero or Midscale
| Datasheet | DAC8871SBPWR |
|---|---|
| Settling Time | 1µs |
| Number of Bits | 16 |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Number of Converters | 1 |
| Voltage Supply Source | Dual ± |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Number of Outputs and Type | 1 Voltage, Unipolar; 1 Voltage, Bipolar |

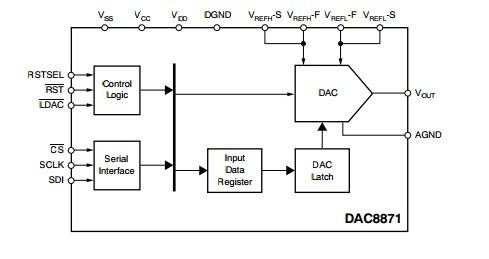

functional diagram
