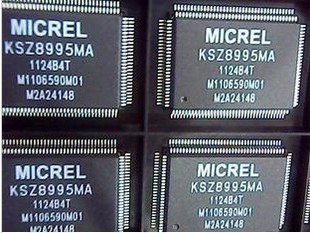

MICREL KSZ8995MA KSZ8995 Integrated 5-Port 10/100 Managed Switch

MICREL KSZ8995MA KSZ8995 Integrated 5-Port 10/100 Managed Switch New and original have in stock

Features

• Integrated switch with five MACs and five fast

Ethernet transceivers fully-compliant to IEEE 802.3u

standard

• Shared memory based switch fabric with fully nonblocking configuration

• 1.4Gbps high-performance memory bandwidth

• 10BASE-T, 100BASE-TX, and 100BASE-FX modes

• Dual MII configuration: MII-Switch (MAC or PHY

mode MII) and MII-P5 (PHY mode MII).

• IEEE 802.1q tag-based VLAN(16 VLANs, full-range

VID) for DMZ port, WAN/LAN separation or interVLAN switch links

• VLAN ID tag/untag options, per-port basis

• Programmable rate limiting 0Mbps to 100Mbps,

ingress and egress port, rate options for high and

low priority, per-port basis in 32Kbps increments

• Flow control or drop packet rate limiting

(ingress port)

• Integrated MIB counters for fully-compliant statistics

gathering, 34 MIB counters per port

• Enable/Disable option for huge frame size up to

1916 bytes per frame

• IGMP v1/v2 snooping for multicast packet filtering

• Special tagging mode to send CPU info on ingress

packet’s port value

• SPI slave (complete) and MDIO (MII PHY only)

serial management interface for control of register

configuration

• MAC-id based security lock option

• Control registers configurable on-the-fly (portpriority, 802.1p/d/q, AN...)

• CPU read access to MAC forwarding table entries

• 802.1d spanning tree protocol

• Port mirroring/monitoring/sniffing: ingress and/or

egress traffic to any port or MII

• Broadcast storm protection with % control – global

and per-port basis

• Optimization for fiber-to-copper media conversion

• Full-chip hardware power-down support (register

configuration not saved)

• Per-port based software power-save on PHY (idle

link detection, register configuration preserved)

• QoS/CoS packets prioritization supports:

− Per port, 802.1p and DiffServ based

• 802.1p/q tag insertion or removal on a per-port basis

(egress)

• MDC and MDI/O interface support to access the MII

PHY control registers (notall control registers)

• MII local loopback support

• On-chip 64Kbyte memory for frame buffering (not

shared with 1K unicast address table)

• Wire-speed reception and transmission

• Integrated look-up engine with dedicated 1K MAC

addresses

• Full duplex IEEE 802.3x and half-duplex back

pressure flow control

• Comprehensive LED support

• 7-wire SNI support for legacy MAC interface

• Automatic MDI/MDI-X crossover for plug-and-play

• Disable automatic MDI/MDI-X option

•Low power:

−Core: 1.8V

− Digital I/O: 3.3V

− Analog I/O: 3.3V

• 0.18µm CMOS technology

•Temperature ranges:

− Commercial: 0°C to +70°C

− Industrial: –40°C to +85°C

• Available in 128-pin PQFP package

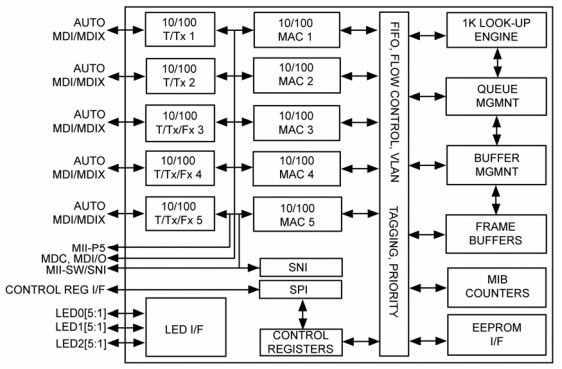

Functional Diagram
