MOLEX 503548-1220 SlimStack™ 0.40mm Pitch Board-to-Board Connectors
| Part number | Brand | Date | QTY | Package | Remarks |
| 503548-1220 | MOLEX | 14+ROHS | 7500 | Connector |
Original have in stock |
Specification
| Datasheet | 503548-1220 |
|---|---|
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Center Strip Contacts |
| Number of Positions | 12 |
| Pitch | 0.016" (0.40mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 0.7mm |
| Height Above Board | 0.027" (0.68mm) |

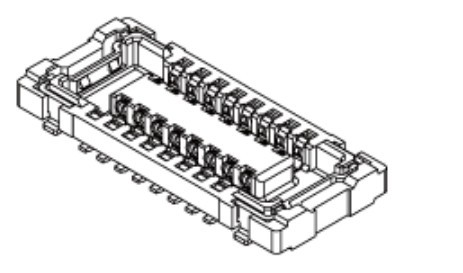

image - Reference only
