BTS4175SGA Smart High-Side Power Switch

INFINEON  BTS4175SGA Smart High-Side Power Switch MJD New in stock

Basic Features

• Fit for 12V and 24V application

• One Channel device

• Very Low Stand-by Current

• CMOS Compatible Inputs

• Electrostatic Discharge Protection (ESD)

• Optimized Electromagnetic Compatibility

• Logic ground independent from load ground

• Very Low Leakage Current from OUT to the load in OFF state

• Green Product (RoHS compliant)

• AEC Qualified

Datasheet	BTS4175SGA
Packaging	Digi-Reel®
Type	High Side
Input Type	Non-Inverting
Number of Outputs	1
On-State Resistance	175 mOhm
Current - Output / Channel	1.3A
Current - Peak Output	6A
Voltage - Supply	6 V ~ 52 V
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	PG-DSO-8

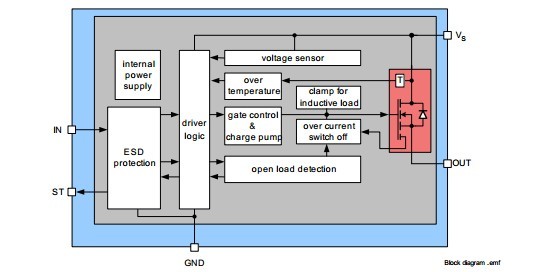

Block Diagram
