ST7735R ST7735 262K Color Single-Chip New in stock

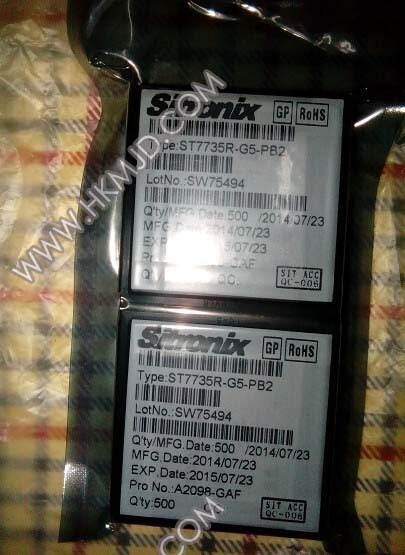

Sitronix  ST7735R ST7735 262K Color Single-Chip TFT Controller/Driver New and original have in stock

PDF Datasheet：

Features

Single chip TFT-LCD Controller/Driver with RAM

On-chip Display Data RAM (i.e. Frame Memory)

-132 (H) x RGB x 162 (V) bits

LCD Driver Output Circuits:

-Source Outputs: 132 RGB channels

-Gate Outputs: 162 channels

-Common electrode output

Display Resolution

-132 (RGB) x 162

(GM[2:0]= ”000”, DDRAM: 132 x 18-bits x 162)

-128 (RGB) x 160

(GM[2:0]= ”011”, DDRAM: 128 x 18-bits x 160)

Display Colors (Color Mode)

-Full Color: 262K, RGB=(666) max., Idle Mode OFF

-Color Reduce: 8-color, RGB=(111), Idle Mode ON

Programmable Pixel Color Format (Color Depth) for

Various Display Data input Format

-12-bit/pixel: RGB=(444) using the 384k-bit frame

memory and LUT

-16-bit/pixel: RGB=(565) using the 384k-bit frame

memory and LUT

-18-bit/pixel: RGB=(666) using the 384k-bit frame

memory and LUT

Various Interfaces

-Parallel 8080-series MCU Interface

(8-bit, 9-bit, 16-bit & 18-bit)

-3-line serial interface

-4-line serial interface

Display Features

-Programmable partial display duty

-Line inversion, frame inversion

-Support both normal-black & normal-white LC

-Software programmable color depth mode

Built-in Circuits

-DC/DC converter

-Adjustable VCOM generation

-Non-volatile (NV) memory to store initial register setting

-Oscillator for display clock generation

-Factory default value (module ID, module version, etc)

are stored in NV memory

-Timing controller

Built-in NV Memory for LCD Initial Register Setting

-7-bits for ID2

-8-bits for ID3

-7-bits for VCOM adjustment

Wide Supply Voltage Range

-I/O Voltage (VDDI to DGND): 1.65V~VDD

(VDDI ≤ VDD)

-Analog Voltage (VDD to AGND): 2.6V~3.3V

On-Chip Power System

-Source Voltage (GVDD to AGND): 3.0V~5.0V

-VCOM HIGH level (VCOMH to AGND): 2.5V to 5.0V

-VCOM LOW level (VCOML to AGND): -2.4V to 0.0V

-Gate driver HIGH level (VGH to AGND):

+10.0V to +15V

-Gate driver LOW level (VGL to AGND):

-12.4V to -7.5V

Operating Temperature: -30°C to +85°C
