RENSAS UPD720200AF1 UPD720200 3.0 host controller New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| UPD720200AF1 | RENSAS | 14+ROHS | 7500 | BGA |
Original have in stock |
Features
Universal Serial Bus 3.0 specification Revision 1.0
PCI Express Base Specification Revision 2.0
Intel’s eXtensible Host Controller Interface (xHCI) Specification
Revision 0.96
PCI Express Card Electromechanical Specification Revision 2.0
PCI Bus Power Management Interface Specification Revision 1.2
Support USB legacy function
Supports Serial Peripheral Interface (SPI) type ROM
System clock : 24 MHz crystal or 48 MHz external clock
3.3 V and 1.05 V Power supply
Part Number
μPD720200AF1-DAP-A
Package
176-pin plastic FBGA (10 x 10 mm, 0.65 mm ball pitch)
Target Systems
Desktop and Laptop computers
PCI Express Card / Express Card
Docking Station
Server

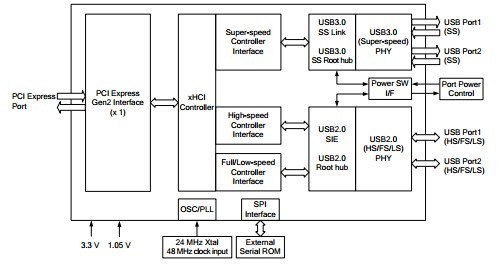

Block Diagram
