MAXIM MAX4636EUB MAX4636 Fast, Low-Voltage, Dual 4Ω SPDT CMOS Analog Switches
| Part number | Brand | Date | QTY | Package | Remarks |

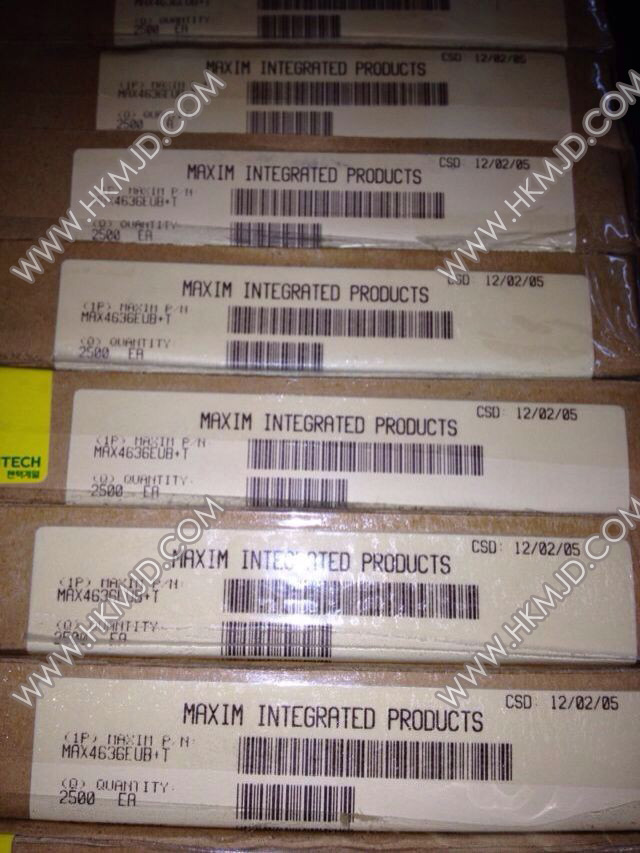

| MAX4636EUB | MAXIM | 14+ROHS | 7500 | MSOP-10 |
Original have in stock |
PDF Datasheet：
Features
♦ Guaranteed On-Resistance
4Ω (max) +5V Supply
5.5Ω (max) +3V Supply
♦ Guaranteed Match Between Channels
0.2Ω (max)
♦ Guaranteed Flatness Over Signal Range
1Ω (max) with +5V Supply
♦ Fast Switching Speeds
14ns (max) Turn-On Time
6ns (max) Turn-Off Time
♦ 1.8V Operation
100Ω (typ) On-Resistance Over Temperature
56ns (typ) Turn-On Time
17ns (typ) Turn-Off Time
♦ +1.8V to +5.5V Single-Supply Operation
♦ Rail-to-Rail® Signal Handling
♦ Low Crosstalk: -67dB at 1MHz
♦ High Off-Isolation: -65dB at 1MHz
♦ THD: 0.1%
Specification:
| Function | Switch |
|---|---|
| Circuit | 2 x SPDT |
| On-State Resistance | 4 Ohm |
| Voltage Supply Source | Single Supply |
| Voltage - Supply, Single/Dual (±) | 1.8 V ~ 5.5 V |
| Current - Supply | 1µA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-uMAX |
