IR IR2110S HIGH AND LOW SIDE DRIVER MJD New and original have in stock
Part number | Brand | Date | QTY | Package | Remarks |
IR2110S | IR | 14+ROHS | 7500 | SOP-16 |
Original have in stock |
Features
• Floating channel designed for bootstrap operation
Fully operational to +500V or +600V
Tolerant to negative transient voltage
dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout for both channels
• 3.3V logic compatible
Separate logic supply range from 3.3V to 20V
Logic and power ground ±5V offset
• CMOS Schmitt-triggered inputs with pull-down
• Cycle by cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Outputs in phase with inputs

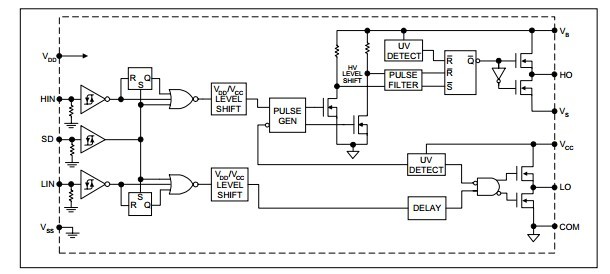

Functional Block Diagram
