IR IRF7704 40V Single P-channel HexFET Power MOSFET have large stock
| Part number | Brand | Date | QTY | Package | Remarks |
| IRF7704 | IR | 14+ROHS | 7500 | TSSOP-8 |
Original have in stock |
Specification:
|
Datasheet |
|
|
Mfr Package Description |
TSSOP-8 |
|
Status |
TRANSFERRED |
|
Package Shape |
RECTANGULAR |
|
Package Style |
SMALL OUTLINE |
|
Surface Mount |
Yes |
|
Terminal Form |
GULL WING |
|
Terminal Finish |
TIN LEAD |
|
Terminal Position |
DUAL |
|
Number of Terminals |
8 |
|
Package Body Material |
PLASTIC/EPOXY |
|
Configuration |
SINGLE WITH BUILT-IN DIODE |
|
Number of Elements |
1 |
|
Transistor Application |
SWITCHING |
|
Transistor Element Material |
SILICON |
|
Channel Type |
P-CHANNEL |
|
FET Technology |
METAL-OXIDE SEMICONDUCTOR |
|
Operating Mode |
ENHANCEMENT |
|
Transistor Type |
GENERAL PURPOSE POWER |
|
Drain Current-Max (ID) |
4.6 A |
|
DS Breakdown Voltage-Min |
40 V |
|
Drain-source On Resistance-Max |
0.0460 ohm |
|
Pulsed Drain Current-Max (IDM) |
19 A |

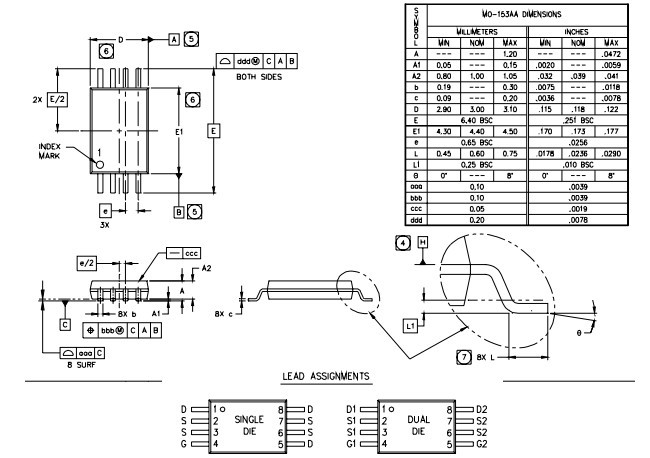

Package Outline
MJD is a corporation which engaged in agency electronic components. MJD Through seventeen years unrimitting efforts, aspire to provide our customers with world-leading products and service. Now already became a one of the most famous electronic components distributor in China.
