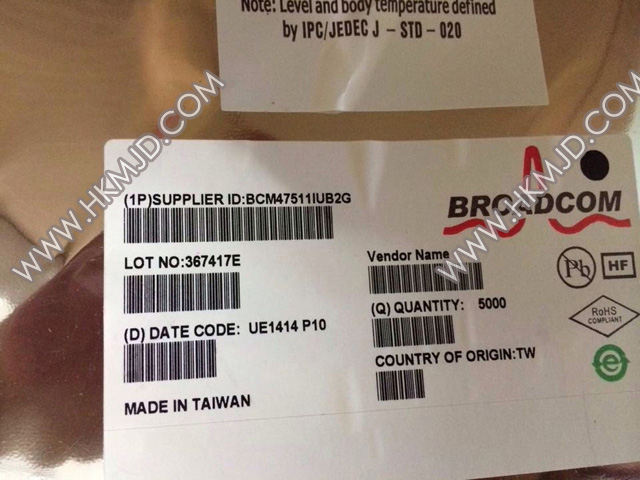

BCM47511IUB2G BCM47511 Integrated Monolithic GNSS Receiver

BROADCOM BCM47511IUB2G BCM47511 Integrated Monolithic GNSS Receiver

Feature

The GNSS core of the BCM47511 uses a host-based system architecture that splits processing functions between the GNSS chip and the host system CPU, significantly decreasing system cost, while allowing customization or optimization of GPS/GLONASS/QZSS/SBAS navigation software algorithms on the host. This software is compatible with Broadcom's existing GPS solutions, the BCM4750 and BCM4751, enabling rapid adoption while accelerating time-to-market

The host-based architecture permits the GNSS software processing tasks to be divided among the chip and the host CPU, so that the BCM47511 performs most of the computationally intensive operations, leaving the host software to implement the final calculations that may be affected by carrier and platform specific requirements. As a result, processing demands on the host CPU are minimized and no real time requirements are imposed

The BCM47511 provides low power consumption and an ultra low power tracking mode

The BCM47511 also includes on-chip low drop-out (LDO) regulators to supply the GNSS TCXO and optional low noise amplifier (LNA), reducing overall bill-of-materials (BOM) cost

Broadcom provides GNSS Location Library software API and GNSS protocol client software that gives designers complete access to the BCM47511's advanced capabilities
