LMX2332LSLBX LMX2332 Low Power Dual Frequency Synthesizer

NS LMX2332LSLBX LMX2332 Low Power Dual Frequency Synthesizer

Features

Ultra low current consumption

2.7V to 5.5V operation

Selectable synchronous or asynchronous powerdown

mode:ICC = 1 µA typical at 3V

n Dual modulus prescaler:

LMX2330L (RF) 32/33 or 64/65

LMX2331L/32L (RF) 64/65 or 128/129

LMX2330L/31L/32L (IF) 8/9 or 16/17

Selectable charge pump TRI-STATE® mode

Selectable charge pump current levels

Selectable Fastlock™ mode

Upgrade and compatible to LMX233XA family

Applications

Portable Wireless Communications(PCS/PCN, cordless)

Cordless and cellular telephone systems

Wireless Local Area Networks (WLANs)

Cable TV tuners (CATV)

Other wireless communication systems

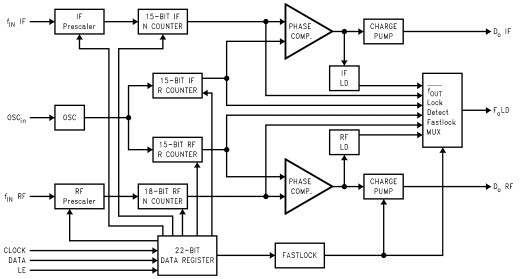

Functional Block Diagram
