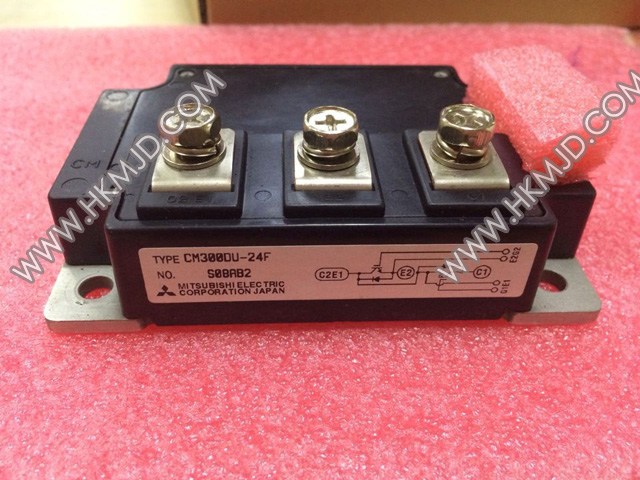

MIT CM300DU-24F Trench Gate Design Dual IGBTMOD™ 300 Amperes/1200 Volts
| Part number | Brand | Date | QTY | Package | Remarks |
| CM300DU-24F | MIT | 14+ROHS | 7500 | Module |
Original have in stock |
Specification
| PDF Datasheet | CM300DU-24F |
|---|---|
| IGBT Type | Trench |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 300A |
| Power - Max | 890W |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 1mA |
| Input Capacitance (Cies) @ Vce | 120nF @ 10V |
| Input | Standard |
| NTC Thermistor | No |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
OUTLINE DRAWING & CIRCUIT DIAGRAM
