MSP430F1111AIDWR MSP430F1111A MIXED SIGNAL MICROCONTROLLER

TI MSP430F1111AIDWR MSP430F1111A MIXED SIGNAL MICROCONTROLLER

PDF Datasheet：

Feature：

Low Supply Voltage Range 1.8 V – 3.6 V

Ultralow-Power Consumption

Active Mode: 160 µA at 1 MHz, 2.2 V

Standby Mode: 0.7 µA

Off Mode (RAM Retention): 0.1 µA

Wake-Up From Standby Mode in less than 6 µs

16-Bit RISC Architecture, 125 ns Instruction Cycle Time

Basic Clock Module Configurations:

Various Internal Resistors

Single External Resistor

32-kHz Crystal

High-Frequency Crystal

Resonator

External Clock Source

16-Bit Timer_A With Three Capture/Compare Registers

On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion

Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse

Family Members Include:

   MSP430C1101: 1KB ROM, 128B RAM

   MSP430C1111: 2KB ROM, 128B RAM

   MSP430C1121: 4KB ROM, 256B RAM

   MSP430F1110A: 1KB + 128B Flash Memory 128B RAM

   MSP430F1111A: 2KB + 256B Flash Memory 128B RAM

   MSP430F1121A: 4KB + 256B Flash Memory 256B RAM

Available in a 20-Pin Plastic Small-Outline Wide Body (SOWB) Package, 20-Pin Plastic Small-Outline Thin Package, and 20-Pin TVSOP (F11x1A only) and 24-Pin QFN

For Complete Module Descriptions, Refer to the MSP430x1xx Family User’s Guide, Literature Number SLAU049

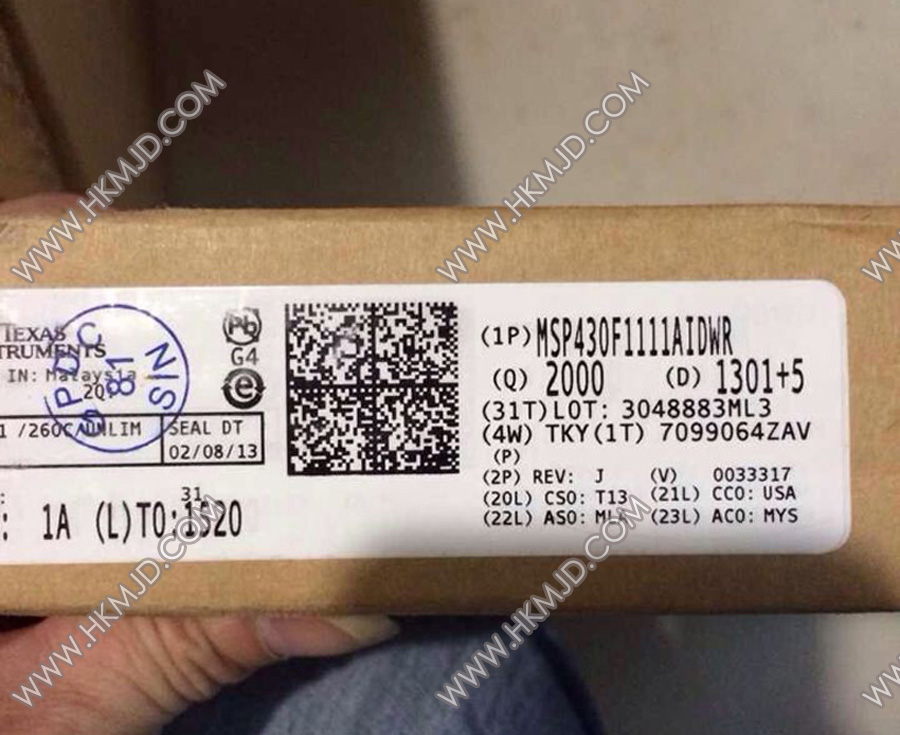

Picture：
