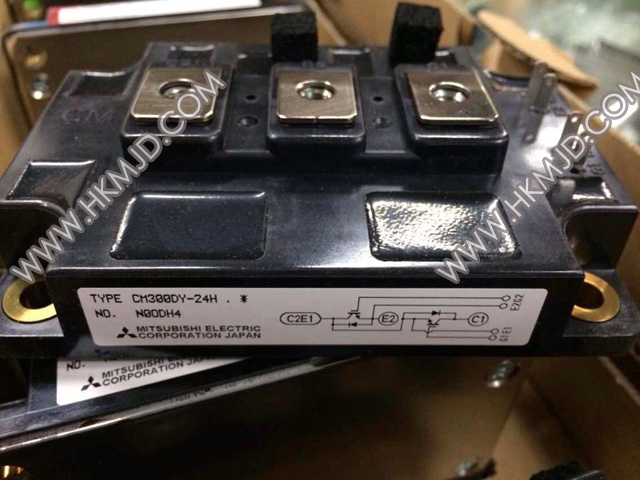

MIT CM300DY-24H HIGH POWER SWITCHING USE INSULATED TYPE
| Part number | Brand | Date | QTY | Package | Remarks |
| CM300DY-24H | MIT | 14+ROHS | 7500 | MODULE |
Original have in stock |
Features:
Low Drive Power
Low VCE(sat)
Discrete Super-Fast Recovery Free-Wheel Diode
High Frequency Operation
Isolated Baseplate for Easy
Heat Sinking
Applications:
AC Motor Control
Motion/Servo Control
UPS
Welding Power Supplies
Specification
| Datasheet | CM300DY-24H |
|---|---|
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 300A |
| Power - Max | 2100W |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 1mA |
| Input Capacitance (Cies) @ Vce | 60nF @ 10V |
| Input | Standard |
| NTC Thermistor | No |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Other Names | 835-1089 CM300DY-24H-ND |
