TRIQUINT TQP6M9002 802.11b/g/n WLAN/BT Front-End Module
| Part number | Brand | Date | QTY | Package | Remarks |

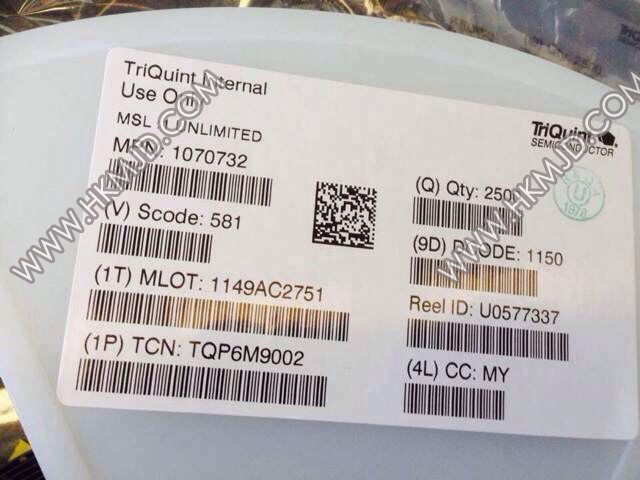

| TQP6M9002 | TRIQUINT | 14+ROHS | 7500 | QFN |
Original have in stock |
Features
Fully Integrated, 802.11a/b/g/n + BT frontend module
Internally matched input/output
Integrated directional detectors
Temperature Compensated Bias Network
Single battery voltage of 2.3V-4.8V
Leadless 4.0 x 4.0 x 0.5 mm SMT Pb-Free
Minimum Pout = 20.5dBm 802.11b and
15.5dBm 802.11g OFDM 64QAM at 3.8% EVM
Minimum Pout = 15.0dBm 802.11a OFDM 64QAM at 3.5% EVM
Applications
IEEE802.11a/b/g/n WLAN/BT Applications
Single-Chip RF Front-end Module
Wireless LAN Systems
Portable Battery-Powered Equipment Package Style
4.0x4.0x0.5mm ETSLP-24 Lead-free, Halogen-free, MSL-1 package
