LT LTC6992HS6-4 LTC6992 TimerBlox Voltage-Controlled Pulse Width Modulator (PWM)
| Part number | Brand | Date | QTY | Package | Remarks |
| LTC6992HS6-4 | LT | 14+ROHS | 7500 | SOT23-6 |
Original have in stock |
Feature
Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input
Four Available Options Define Duty Cycle Limits
– Minimum Duty Cycle at 0% or 5%
– Maximum Duty Cycle at 95% or 100%
Frequency Range: 3.81Hz to 1MHz
Single Resistor Programs Frequency with < 2.4% Maximum Error
PWM Duty Cycle Error < 4.5% Maximum
Frequency Modulation (VCO) Capability
2.25V to 5.5V Single Supply Operation
115μA Supply Current at 100kHz
500μs Start-Up Time
CMOS Output Driver Sources/Sinks 20mA
–40°C to 125°C Operating Temperature Range
Available in Low Profile (1mm) SOT-23 (ThinSOT™) and 2mm × 3mm DFN

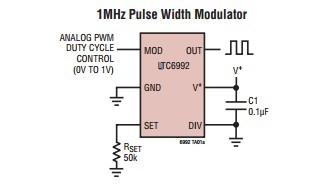

TYPICAL APPLICATION
