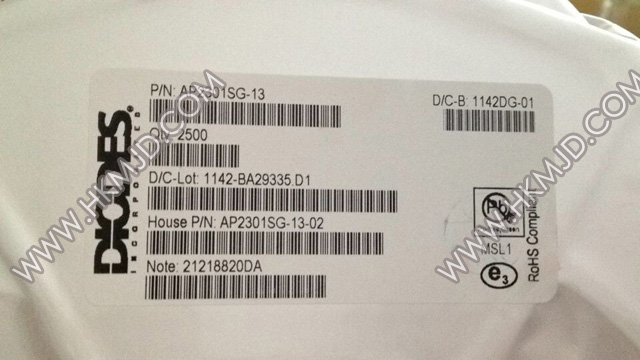

DIODES AP2301SG-13 2.0A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH
| Part number | Brand | Date | QTY | Package | Remarks |
| AP2301SG-13 | DIODES | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Specification：
|
PDF Datasheet |
AP2301SG-13 |
|
Mfr Package Description |
GREEN, SOP-8 |
|
Lead Free |
Yes |
|
EU RoHS Compliant |
Yes |
|
Status |
ACTIVE |
|
Package Shape |
RECTANGULAR |
|
Package Style |
SMALL OUTLINE |
|
Surface Mount |
Yes |
|
Terminal Form |
GULL WING |
|
Terminal Pitch |
1.27 mm |
|
Terminal Finish |
MATTE TIN |
|
Terminal Position |
DUAL |
|
Number of Functions |
1 |
|
Number of Terminals |
8 |
|
Package Body Material |
PLASTIC/EPOXY |
|
Temperature Grade |
INDUSTRIAL |
|
Number of Channels |
1 |
|
Analog IC - Other Type |
POWER SUPPLY SUPPORT CKT |
|
Operating Temperature-Max |
85 Cel |
|
Operating Temperature-Min |
-40 Cel |
|
Supply Voltage-Max (Vsup) |
5.5 V |
|
Supply Voltage-Min (Vsup) |
2.7 V |
|
Supply Voltage-Nom (Vsup) |
5 V |
