EPCS64SI16N Serial Configuration Devices

ALTERA EPCS64SI16N Serial Configuration Devices Band new and original have in stock

PDF Datasheet：

Features

The serial configuration devices provide the following features:

■ 1-, 4-, 16-, 64-, and 128-Mbit flash memory devices that serially configure

Arria® series, Cyclone® series, all device families in the Stratix® series except the

Stratix device family, and FPGAs using the active serial (AS) configuration scheme

■ Easy-to-use four-pin interface

■ Low cost, low-pin count, and non-volatile memory

■ Low current during configuration and near-zero standby mode current

■ 2.7-V to 3.6-V operation

■ EPCS1 and EPCS4 available in 8-pin small outline integrated circuit (SOIC)

package. EPCS16 available in 8-pin or 16-pin SOIC packages. EPCS64 and

EPCS128 available in 16-pin SOIC package

■ Enables the Nios® processor to access unused flash memory through AS memory interface

■ Re-programmable memory with more than 100,000 erase/program cycles

■ Write protection support for memory sectors using status register bits

■ In-system programming support with SRunner software driver

■ In-system programming support with USB Blaster™, EthernetBlaster, or ByteBlaster™ II download cables

■ Additional programming support with the Altera® Programming Unit (APU) and

programming hardware from BP Microsystems, System General, and other vendors

■ Delivered with the memory array erased (all the bits set to 1)

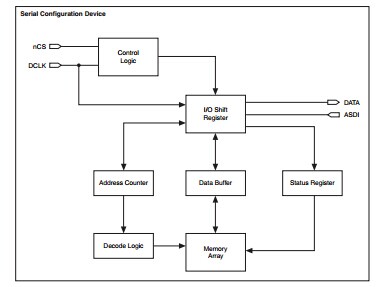

Serial Configuration Device Block Diagram

Picture:
