AD ADM2582EBRWZ ADM2582 Signal and Power Isolated RS-485 Transceiver with ±15 kV ESD Protection
| Part number | Brand | Date | QTY | Package | Remarks |
| ADM2582EBRWZ | AD | 14+ROHS | 7500 | SOP |
Original have in stock |
FEATURES
Isolated RS-485/RS-422 transceiver, configurable as half or
full duplex
isoPower® integrated isolated dc-to-dc converter
±15 kV ESD protection on RS-485 input/output pins
Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
ADM2582E data rate: 16 Mbps
ADM2587E data rate: 500 kbps
5 V or 3.3 V operation
Connect up to 256 nodes on one bus
Open- and short-circuit, fail-safe receiver inputs
High common-mode transient immunity: >25 kV/μs
Thermal shutdown protection
Safety and regulatory approvals (pending)
UL recognition: 2500 V rms for 1 minute per UL 1577
VDE Certificates of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM = 560 V peak
Operating temperature range: −40°C to +85°C
Highly integrated, 20-lead, wide-body SOIC package
APPLICATIONS
Isolated RS-485/RS-422 interfaces
Industrial field networks
Multipoint data transmission systems

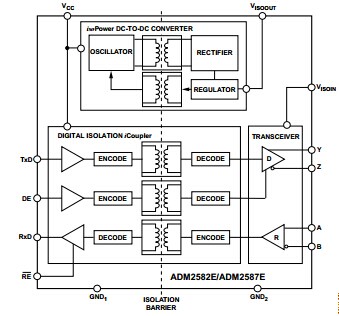

FUNCTIONAL BLOCK DIAGRAM
