RF Mixers UPC2798GR UPC2798 IC FOR DIGITAL CATV
| Part number | Brand | Date | QTY | Package | Remarks |
| UPC2798GR | NEC | 14+ROHS | 7500 | SSOP-20 |
Original have in stock |
DESCRIPTION
The µPC2798GR is a Silicon monolithic IC designed for use as QAM IF down convertor for digital CATV. This IC
consists of AGC amplifier, mixer, oscillator, and video amplifier.
The package is 20 pins SSOP suitable for high-density surface mount.
Specification：
| PDF Datasheet | UPC2798GR  |
|---|---|
| Packaging | Tape & Reel (TR) |
| RF Type | QAM |
| Frequency | 30MHz ~ 250MHz |
| Number of Mixers | 1 |
| Gain | 74dB |
| Noise Figure | 9dB |
| Secondary Attributes | Down Converter |
| Current - Supply | 45mA |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Package / Case | 20-SSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-SSOP |

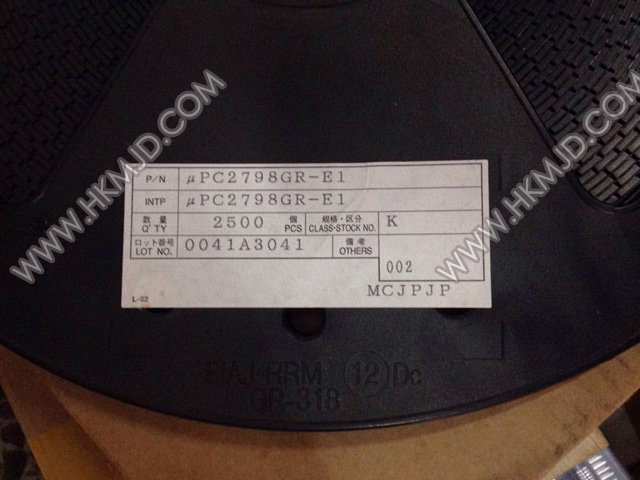

Picture：
