Technical Specifications：
|
Product Description |
Wi-Fi SiP |
|
Network Standard |
IEEE 802.11b/g Compliant |
|
Host Interface |
SDIO / eHPI16 / eHPI8 |
|
Operating Voltage |
3.3V / 1.8V / 2.8V |
|
Temperature |
Operating: 0℃ ~ 65℃ Storage: -40℃ ~ 85℃ |
|
Humidity |
Operating:10 ~ 95% (Non-Condensing) |
|
Storage:5 ~ 95% (Non-Condensing) |
|
|
Dimension |
9.0mm X 9.0mm X 1.4mm |
|
Package |
LGA |
|
Frequency |
2.4GHz ISM radio band |
|
Channel |
1~14 |
|
Modulation |
DSSS, OFDM, 64-QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK |
|
Medium Access Protocal |
CSMA / CA with ACK |
|
Security |
WEP 64-bit and 128-bitencryption, WPA, AES-CCMP |
|
Co-existence |
BlueTooth and Cell Phone Co-existence |

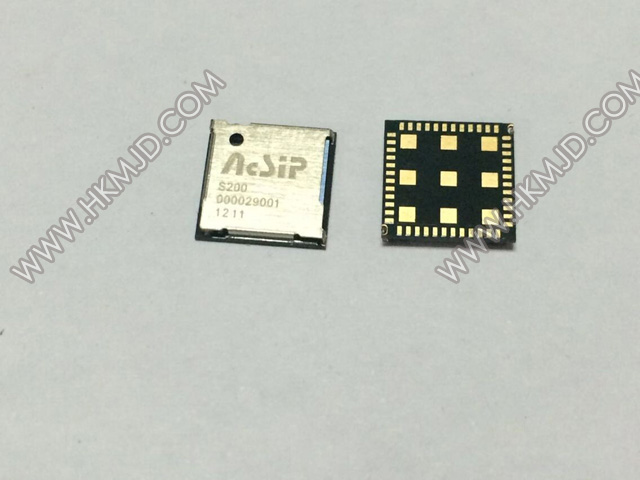

Picture：
