ZSC31015EEG1 ZSC31015 Analog Output Sensor Signal Conditioner

PDF DATASHEET：

Features

Digital compensation of sensor offset, sensitivity, temperature drift, and non-linearity

Programmable analog gain and digital gain; accommodates bridges with spans < 1mV/V and high offset

Many diagnostic features on chip (e.g., EEPROM signature, bridge connection checks, bridge short detection, power loss detection)

Independently programmable high and low clipping levels

24-bit customer ID field for module traceability

Internal temperature compensation reference (no external components)

Option for external temperature compensation with addition of single diode

Output options: rail-to-rail ratiometric analog voltage (12-bit resolution), absolute analog voltage, digital one-wire interface

Fast power-up to data out response; output available 5ms after power-up

Current consumption depends on programmed sample rate: 1mA down to 250A (typical)

Fast response time: 1ms (typical)

High voltage protection up to 30V with external JFET

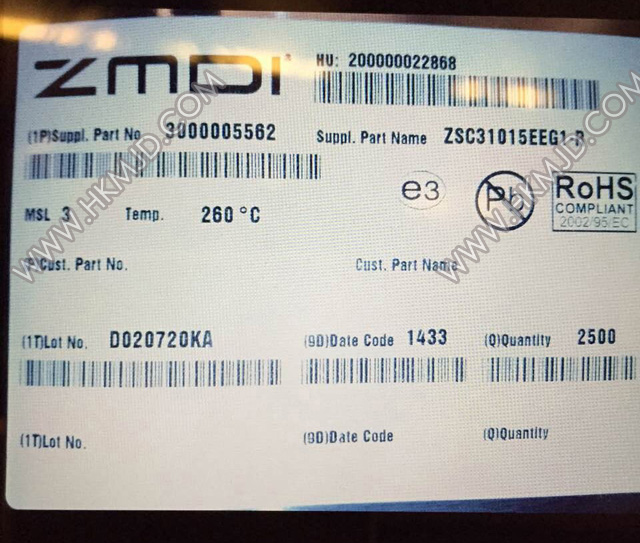

Picture：
