ADUM1402BRWZ ADUM1402 Quad-Channel Digital Isolators
| Part number | Brand | Date | QTY | Package | Remarks |

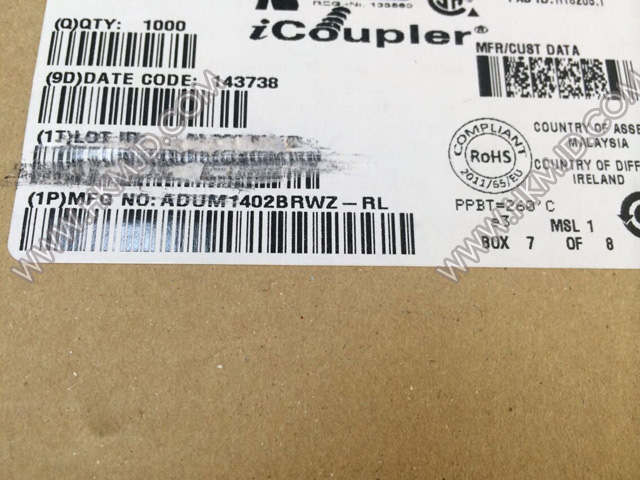

| ADUM1402BRWZ | AD | 14+ROHS | 7500 | SOP-16 |
Original have in stock |
Specification：
| PDF Datasheet | ADUM1402BRWZ  |
|---|---|
| Packaging | Tape & Reel (TR) |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |

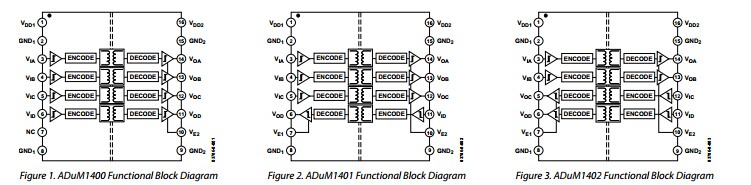

FUNCTIONAL BLOCK DIAGRAMS
