BTS611L1 Smart Two Channel Highside Power Switch

BTS611L1 Smart Two Channel Highside Power Switch

PDF Datasheet：

Features

• Overload protection

• Current limitation

• Short circuit protection

• Thermal shutdown

• Overvoltage protection (including load dump)

• Fast demagnetization of inductive loads

• Reverse battery protection1)

• Undervoltage and overvoltage shutdown with

auto-restart and hysteresis

• Open drain diagnostic output

• Open load detection in ON-state

• CMOS compatible input

• Loss of ground and loss of Vbb protection

• Electrostatic discharge (ESD) protection

Application

• µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads

• All types of resistive, inductive and capacitve loads

• Replaces electromechanical relays, fuses and discrete circuits

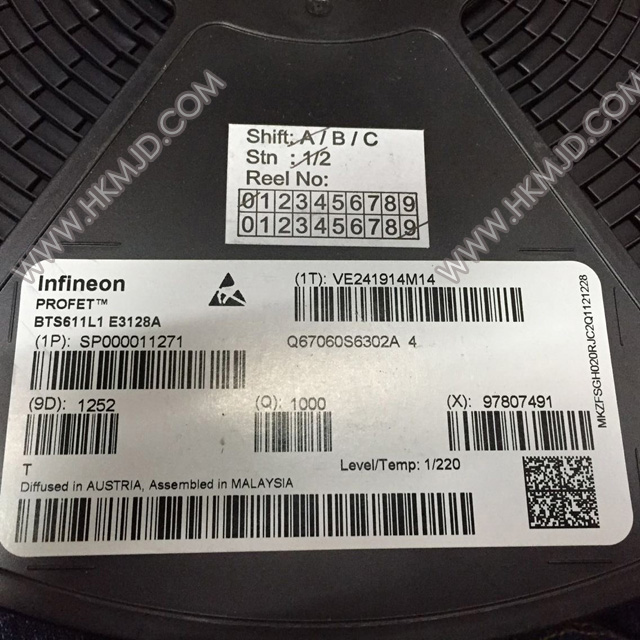

Picture：
