UPD166011T1J INTELLIGENT POWER DEVICE

UPD166011T1J INTELLIGENT POWER DEVICE

PDF Datasheet：

Features：

Built-in charge pump

Low on-state resistance

Short circuit protection

Shutdown by over current detection and over load detection

Over temperature protection

Shutdown with auto-restart on cooling

Built-in diagnostic function

Proportional load current sensing

Defined fault signal in case of abnormal load condition

Loss of ground protection

Under voltage lock out

Active clamp operation at inductive load switch off

AEC Qualified

RoHS compliant with pure tin plating

Application：

Light bulb (~55 W) switching

Switching of all types of 14 V DC grounded loads, such as LED, inductor, resistor and capacitor

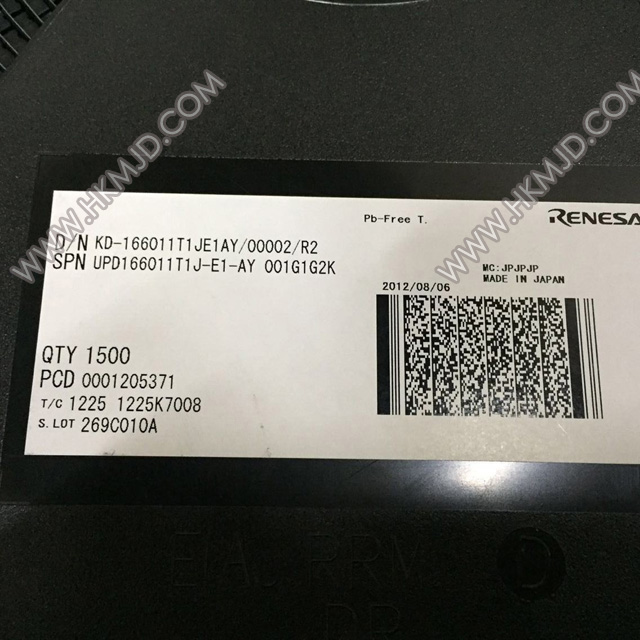

Picture：
