TLP785 Transistor Output Optocouplers

 TLP785 Transistor Output Optocouplers

PDF Datasheet：

Specification：

Manufacturer: Toshiba

Product Category: Transistor Output Optocouplers

RoHS:  Details

Brand: Toshiba

Configuration: 1 Channel

Input Type: DC

Maximum Collector Emitter Voltage: 80 V

Maximum Collector Emitter Saturation Voltage: 0.4 V

Isolation Voltage: 5000 Vrms

Current Transfer Ratio: 100 % to 600 %

Maximum Forward Diode Voltage: 1.3 V

Maximum Input Diode Current: 25 mA

Maximum Collector Current: 10 mA

Maximum Power Dissipation: 240 mW

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 55 C

Package / Case: DIP-4

Series: TLP785

Packaging: Bulk

Forward Current: 16 mA

Maximum Fall Time: 3 us

Maximum Reverse Diode Voltage: 5 V

Maximum Rise Time: 2 us

Number of Channels: 1 Channel

Output Device: NPN Phototransistor

Output Type: DC

Factory Pack Quantity: 100

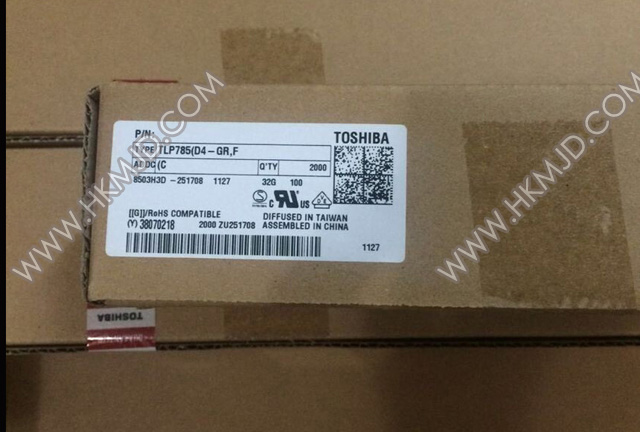

Picture：
