AD AD9523 AD9523-1BCPZ Jitter Cleaner and Clock Generator

Order details

Please contact us to get the newest prices

Part number

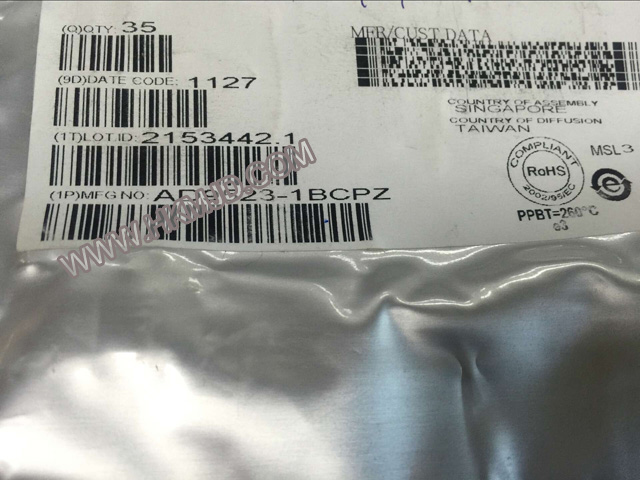

AD9523-1BCPZ

Family

Jitter Cleaner and Clock Generator with 14 Differential or 29 LVCMOS Outputs

Brand

AD

Application

LTE and multicarrier GSM base stations

Feature

Output frequency: <1 MHz to 1 GHz

Start-up frequency accuracy: <±100 ppm (determined by

VCXO reference accuracy)

Zero delay operation

Input-to-output edge timing: <150 ps

14 outputs: configurable LVPECL, LVDS, HSTL, and LVCMOS

14 dedicated output dividers with jitter-free adjustable delay

Adjustable delay: 63 resolution steps of ½ period of VCO

output divider

Output-to-output skew: <50 ps

Duty cycle correction for odd divider settings

Automatic synchronization of all outputs on power-up

Absolute output jitter: <200 fs at 122.88 MHz

Data sheet

Payment methods

1.T/T wire transfer   2.Paypal   3.Western union  4.Cash

Transport way

1.   EMS

2.   TNT

3.   DHL

4.   FedEx

5.   China post

6.   Other special

Warranty

All parts are New And Original enjoy within 45 days return .
