AD AD8023 AD8023ARZ High Current Output Triple Video Amplifier

AD

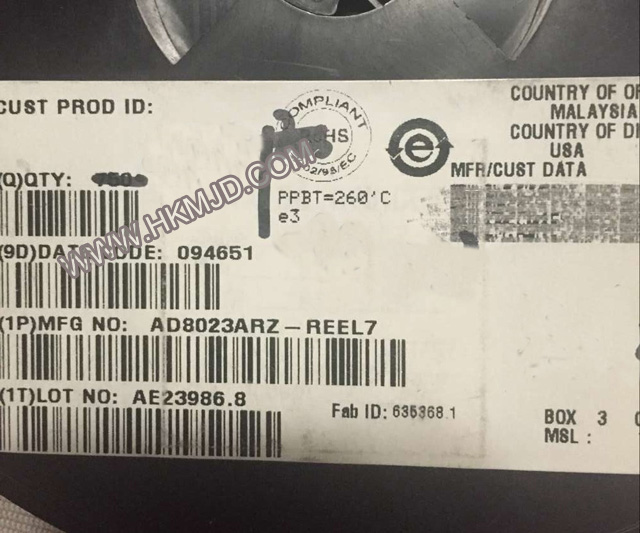

AD8023ARZ

AD8023 date sheet

Product category

High Current Output Triple Video Amplifier

Application

LCD Displays

Video Line Driver

Broadcast and Professional Video

Computer Video Plug-In Boards

Consumer Video

RGB Amplifier in Component Systems

Description

Drives 13 V Output

Drives Unlimited Capacitive Load

High Current Output Drive: 70 mA

Excellent Video Specifications (RL = 150 )

Gain Flatness 0.1 dB to 10 MHz

0.06% Differential Gain Error

0.02 Differential Phase Error

Power

Operates on 2.5 V to 7.5 V Supply

10.0 mA/Amplifier Max Power Supply Current

High Speed

250 MHz Unity Gain Bandwidth (3 dB)

1200 V/

Fast Settling Time of 35 ns (0.1%)

High Speed Disable Function

Turn-Off Time 30 ns

Easy to Use

200 mA Short Circuit Current

Output Swing to 1 V of Rails
