AD AD8091 AD8091ARTZ Low Cost High Speed Rail-to-Rail Amplifiers

AD

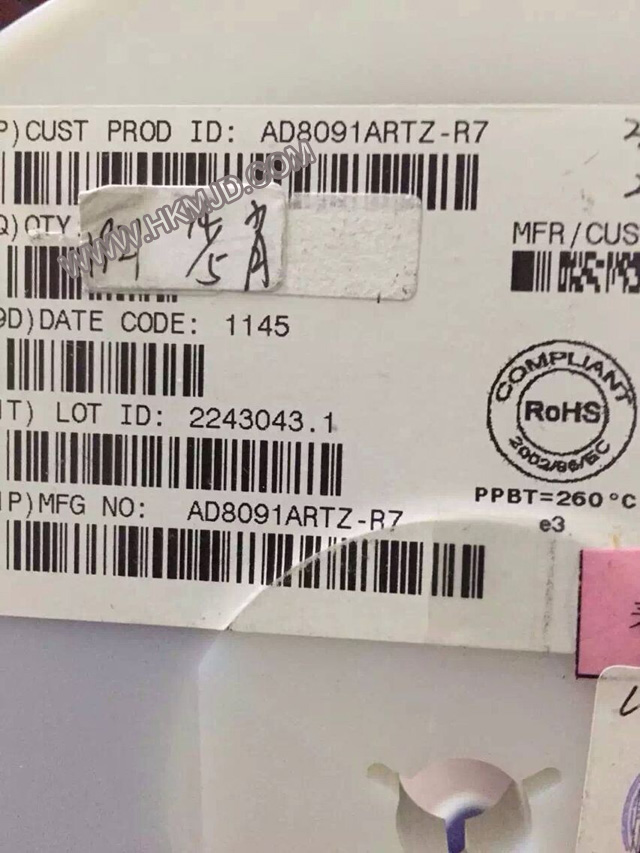

AD8091ARTZ

AD8091 date sheet

Product category

Low Cost High Speed Rail-to-Rail Amplifiers

Application

Coaxial cable drivers

Active filters

Video switchers

Professional cameras

CCD imaging systems

CDs/DVDs

Clock buffers

Description

Low cost single (AD8091) and dual (AD8092) amplifiers

Fully specified at +3 V, +5 V, and ±5 V supplies

Single-supply operation

Output swings to within 25 mV of either rail

High speed and fast settling on 5 V

110 MHz, −3 dB bandwidth (G = +1)

145 V/μs slew rate

50 ns settling time to 0.1%

Good video specifications (G = +2)

Gain flatness of 0.1 dB to 20 MHz; RL = 150 Ω

0.03% differential gain error; RL = 1 kΩ

0.03%differential phase error; RL = 1 kΩ

Low distortion

−80 dBc total harmonic @ 1 MHz; RL = 100 Ω

Outstanding load drive capability

Drives 45 mA, 0.5 V from supply rails

Drives 50 pF capacitive load (G = +1)

Low power of 4.4 mA per amplifier
